• Standard metric and UNC threads available :
  M 24 to M 100 - WLL from 4.50 t to 32.10 t
  UNC 1’’ to UNC 2″1/2 - WLL from 10,000 lbs to 55,000 lbs
• Safety factor 4:1 and 5:1
• Swiveling under load
• 360° rotation - 180° swivel
• Complies with the Machinery Directive 2006/42/CE
• Manufactured in compliance with the EN 1677-1 norm
• Individual traceability number

Description

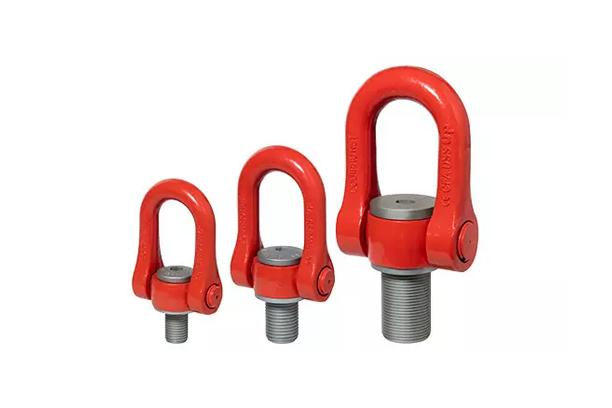

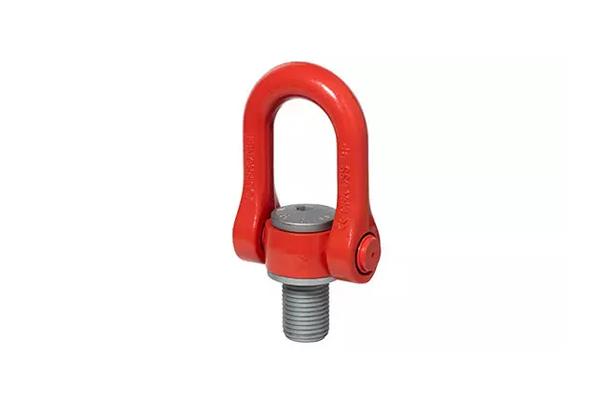

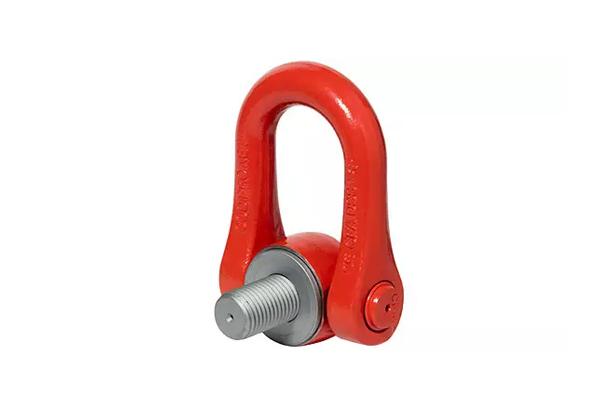

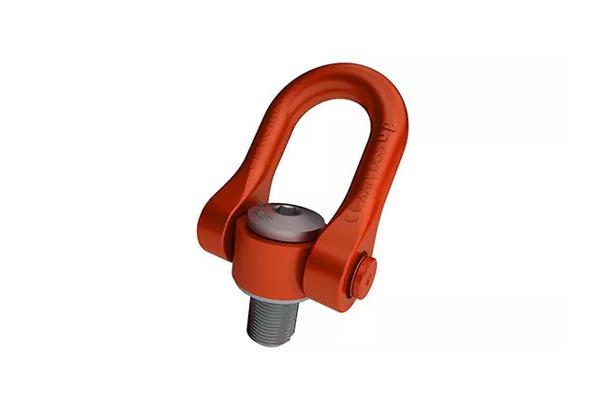

The universal lifting ring DSS is a double swivel ring. It is composed of a GRADUP lifting ring designed for rotations under load. Its double swivel ensures perfect alignment with the sling. The lifting ring can swivel 180° but has a rotating range of 360°. It can be used for any lifting configuration (straight lift, with angle, tilting, rotating).

The universal lifting ring DSS is approved for all lifting configurations from 0° to 90°, designed for use in a temperature range from -20°c to +200°c and carries various markings, including CE, WLL, and tightening torque. It is manufactured in compliance with the REACH regulation and is also available in female, stainless-steel, and welding versions.
