지금 보고 계신 제품의 제조사에요
CHIPANALOG

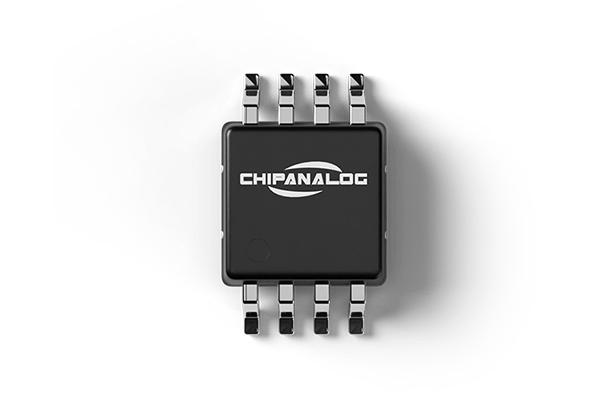

RS-485/422
모델명
CS485S
자료
Data sheet-CHIPANALOG-Interface-RS-485/422-RS485/RS422 Transceiver with ±18kV/±20kV ESD Protection
구매정보
CHIPANALOG
하이엔드 아날로그 칩의 R&D, 설계 및 판매에 중점을 둔 첨단 기술 회사
연락처
+86 21 5083 8601
이메일
sales@chipanalog.com
상품정보에 문제가 있나요?
정보수정 / 삭제요청
코머신은 제품 판매자가 아닙니다.법적고지 및 안내
제조사
CHIPANALOG[바로가기]
제품 타입
기계
브랜드
-
SKU
140495
제품명
RS-485/422
모델명
CS485S, CS485M, CS48505S, CS48520S, CS48505M, CS48520M, CS48505D, CS48520D, CS48505AS, CS48520AS, CS48505AM, CS48520AM, CS48505AD, CS48520AD
사이즈
-
중량
-
제품 상세 정보
General Description
The CS485 family of devices are low-power half-duplex transceivers for RS-485/RS-422 communications in harsh environments. All devices feature ±18kV electro-static discharge (ESD) protection for the bus pins (A and B), eliminating the need for additional system level protection components.
The CS485 family of devices contain one driver(TX) and one receiver(RX), operates over the +3.0V to +5.5V supply range, making these devices convenient for designers to use one part with either +3.3V or +5V supply systems. These devices are specified for data rates up to 250kbps, also include failsafe circuitry, guaranteeing a logic-high receiver output when the receiver inputs are shorted or open.
| Part Number | Series Name | Product Status | Number of Nodes on Bus
|
Fault protection (V) |
Data rate (Mbps) |
Operating Voltage Range (V) |
Common Mede Voltage Range (V) |
Operation Mode
|
HBM ESD Bus Pin (±KV) |
HBM ESD Ohter PIN (±KV) |
Temperature Range (℃) |
Package
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CS485S | RS485/RS422 Transceiver with ±18kV/±20kV ESD Protection |  |
50 | -7~12 | 0.25 | 3-5.5 | -7~12 | Half Duplex | 18 | 8 | -40~125 | SOIC8 |
| CS485M | RS485/RS422 Transceiver with ±18kV/±20kV ESD Protection | |
50 | -7~12 | 0.25 | 3-5.5 | -7~12 | Half Duplex | 18 | 8 | -40~125 | MSOP8 |
| CS48505S | RS485/RS422 Transceiver with ±18kV/±20kV ESD Protection | |
64 | -7~12 | 0.5 | 3-5.5 | -7~12 | Half Duplex | 20 | 8 | -40~125 | SOIC8 |
| CS48520S | RS485/RS422 Transceiver with ±18kV/±20kV ESD Protection | |
64 | -7~12 | 20 | 3-5.5 | -7~12 | Half Duplex | 20 | 8 | -40~125 | SOIC8 |
| CS48505M | RS485/RS422 Transceiver with ±18kV/±20kV ESD Protection | |
64 | -7~12 | 0.5 | 3-5.5 | -7~12 | Half Duplex | 20 | 8 | -40~125 | MSOP8 |
| CS48520M | RS485/RS422 Transceiver with ±18kV/±20kV ESD Protection | |
64 | -7~12 | 20 | 3-5.5 | -7~12 | Half Duplex | 20 | 8 | -40~125 | MSOP8 |
| CS48505D | RS485/RS422 Transceiver with ±18kV/±20kV ESD Protection | |
64 | -7~12 | 0.5 | 3-5.5 | -7~12 | Half Duplex | 20 | 8 | -40~125 | DFN8 3x3 |
| CS48520D | RS485/RS422 Transceiver with ±18kV/±20kV ESD Protection | |
64 | -7~12 | 20 | 3-5.5 | -7~12 | Half Duplex | 20 | 8 | -40~125 | DFN8 3x3 |
| CS48505AS | RS485/RS422 Transceiver with ±18kV/±20kV ESD Protection |  |
256 | -7~12 | 0.5 | 3-5.5 | -7~12 | Half Duplex | 20 | 8 | -40~125 | SOIC8 |
| CS48520AS | RS485/RS422 Transceiver with ±18kV/±20kV ESD Protection | |
256 | -7~12 | 20 | 3-5.5 | -7~12 | Half Duplex | 20 | 8 | -40~125 | SOIC8 |
| CS48505AM | RS485/RS422 Transceiver with ±18kV/±20kV ESD Protection | |
256 | -7~12 | 0.5 | 3-5.5 | -7~12 | Half Duplex | 20 | 8 | -40~125 | MSOP8 |
| CS48520AM | RS485/RS422 Transceiver with ±18kV/±20kV ESD Protection | |
256 | -7~12 | 20 | 3-5.5 | -7~12 | Half Duplex | 20 | 8 | -40~125 | MSOP8 |
| CS48505AD | RS485/RS422 Transceiver with ±18kV/±20kV ESD Protection | |
256 | -7~12 | 0.5 | 3-5.5 | -7~12 | Half Duplex | 20 | 8 | -40~125 | DFN8 3x3 |
| CS48520AD | RS485/RS422 Transceiver with ±18kV/±20kV ESD Protection | |
256 | -7~12 | 20 | 3-5.5 | -7~12 | Half Duplex | 20 | 8 | -40~125 | DFN8 3x3 |
