Description

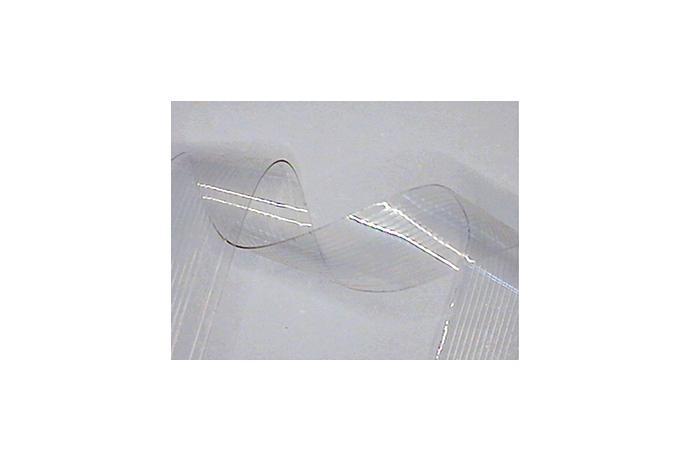

The FOWG series products are photoactive UV curable resins based on acrylate. They are formulated for applications in flexible optical waveguide devices.
 UV curing technology using FOWG series resins has good advantages for simplifying fabrication of optical waveguide devices due to its photolithography free and dry etching free processes for waveguide patterning.
 These resins have low optical loss at near 830 nm wavelength, low birefringence, and excellent environmental stability.
 To obtain the best film quality, a nitrogen environment is recommended during the UV exposure time.

Model Number
- Exguide FOWG-RI series

Features
- UV curing type
- Low optical loss
- Environmental stability
- Low birefringence

Applications
- Flexible opitcal PCB

Performance Specifications



Availability and Storage
Exguide FOWG series solutions are available in 100 g quantities. These solutions should be stored in a dark and cool place under 25°C in the bottle with a tight cap. Moisture should be avoided because it may affect the product performance.
