Description
Based on thermo-optic polymer planar lightwave circuit(PPLC) technology.

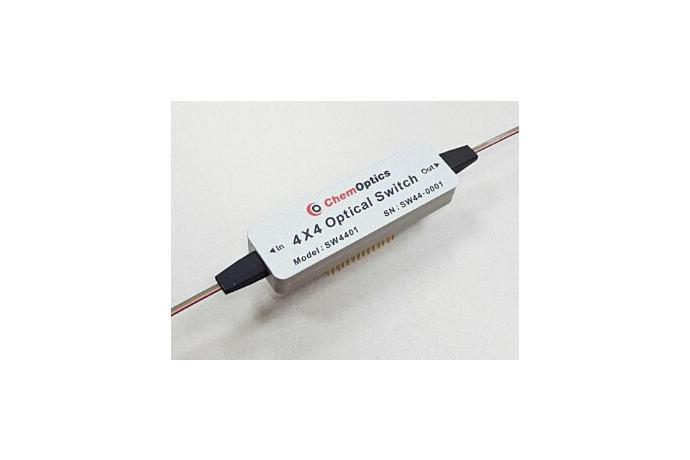

 ChemOptics optical switch provides high isolation and very low power consumption. This thermo-optic switch shows good digital switching characteristics with low insertion loss and PDL.
 With outstanding features and excellent price-performance ratio, it provides special advantages in various optical networks.

Features
- Compact size
- Low insertion loss
- Low power consumption
- High reliability(no moving part)
- Based on polymer planar lightwave circuit

Applications
- Optical integrated circuits
- Redundancy switching
- Optical monitoring systems
- Optical Add-Drop multiplexer

Optical Specifications

- The specifications are applied over Tambient, of -5 ~ 70℃unless noted otherwise
- Excluding connectors

Electrical & Mechanical Specifications



Outline Dimensions and Pin Configurations
