Description

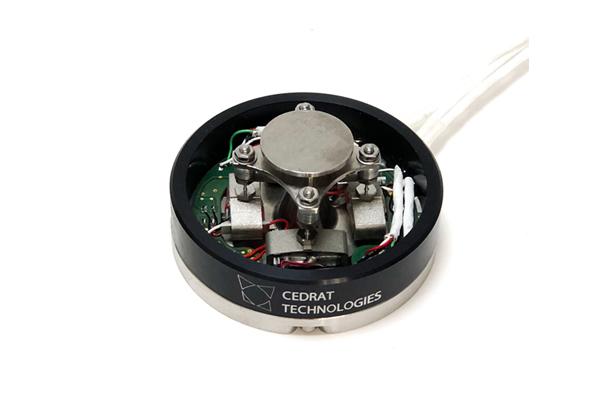

The double tilt translator DTT35XS-SI-2 generates 2 rotations around axis X (Tip) and Y (tilt). Its interfaces are suitable for having high dynamics motion with small diameter glass mirror (< 1 Inch).

Performances

Max Angular stroke 5 mrad; Unloaded Blocked-free resonance frequency 2 600 Hz; Dimensions 21.4mm*45mm*65mm

Available options

Strain gauges, Vacuum

Status

Standard
