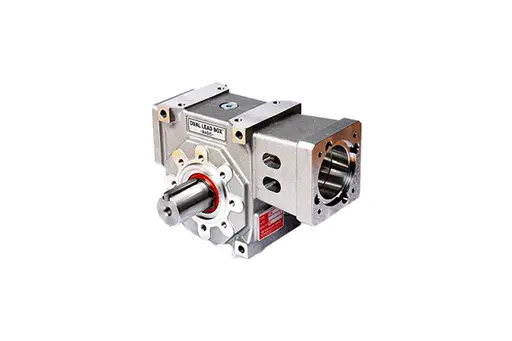

Dual output shaft

Model Name

Series

Precision Worm Reducer

Data

Manufacturer information

Precision Worm Reducer, Gantry Robot 3:1 Reducer, Dual Pitch Cavex Reducer, Dual Lead Worm, Screw Jack and more

Inquiry

Problem with product info?

Update request

Manufacturer

YOUNGJIN WORM

Product Type

Machine

Brand

SKU

142173

Product Name

Dual output shaft

Model Name

Size

Weight

Product Details

DUAL LEAD BOX	35	45	55	63	75	90	110	125
A	86	108	120	134	172	186	220	214
B	110	135	155	173	208	234	276	302
C	44.5	53	61	66	82	91	108	107
D	62	81	90	98	136	141	175	214
E	56	68	78	91	110	130	140	140
F	86	100	112	127	148	170	182	180
G	126	153	175	197	232	264	306	360
H	52.5	62	71	78	94	106	123	135
I(refer)	84	97.5	108	116	140	153.5	177	195
J(h6)	12	15	18	20	24	28	32	35
K	17	20	22	24	28	28	36	45
L	(선택 25페이지 참조)
M	65	85	100	115	130	165	200	185
N(h6)	50	70	80	95	110	130	165	160
O	7	9	9	11	11	13	13	17
P(Max)	73	88	95	105	128	141	158	163
Q	55	67.5	75	84	104	114.5	132	135
R	43	50	56	63.5	74	85	91	111
S	M6	M8	M8	M8	M10	M12	M12	M16
T	83	107	121	135.5	153	189	210	233
T1	38	55	65	72	79	104	119	143
T2	35	50	55	65	70	95.5	110	111
U(h6)	25	35	40	45	50	65	75	75
U1	21	30	35	39.5	44.5	58	67.5	67.5
U2	8	10	12	14	14	16	20	20
U3	M8	M10	M12	M12	M12	M14	M14	M20
W	M6	M8	M8	M10	M10	M12	M12	M16
X	35	45	55	63	75	90	110	125
Y	3	3	3.5	3.5	4	4	5	4
WEIGHT(kg)	3.7	7.0	9.5	15.9	23.2	36.1	52.3	115
