Description Pressure class : JIS 10K/20K/40K,
ANSI 150#/300#/600# Size : 15A to 200A, 1/2" to 8" Material : A105, F304, F304L, F316, F316L,
Other materials available on request End Connection
RF/FF Flange, Ring type joint, Large groove,
Small groove, Tongue & Groove, Butt weld
Option
- Fire safe
- Vacuum service
- NACE
- High temperature to 350°C
- Extended stem

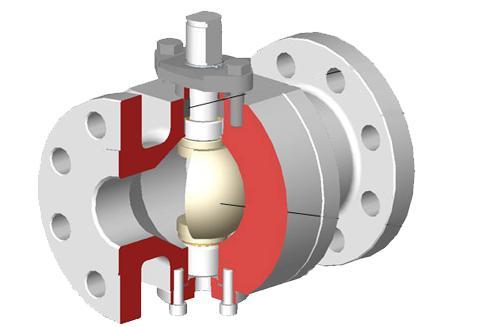

Features & Benefits Trunnion mounted ball
3 piece, full or reduced bore
Soft and Metal seat
Blowout proof stem
Long life stem bearing
Forged body
Uni-directional block & bleed
Fire safe design
Anti-static device
  Application Powder, Slurry service
