Manufacturer
YOOYOUN
Product Type
Machine
Brand
-
SKU
125133
Product Name
Angle Valve
Model Name
YAN-1F
Size
-
Weight
-
Product Details

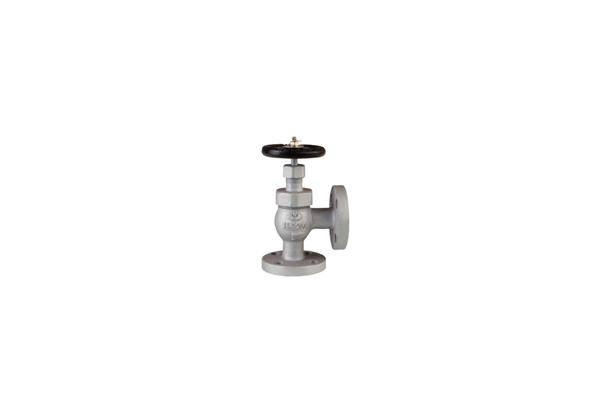

ANGLE VALVE : YAN-1F
- This valve can control a flow with the simple structure.
Category | Content | ||
TYPE | ANGLE | ||
Fluid | Steam / Air / Liquid / Water | ||
Meterial | Body | FCD450 | |
Trim | Stainless steel | ||
Disc | Stainless steel | ||
Design Pressures | 16kgf/cm2 Less than | ||
1.6 Mpa Less than | |||
Design temperature | 220︒C | ||
Connection Code | JIS 16K FF FLANGE | ||
DIMENSION
SIZE | L | H |
15A | 70 | 135 |
20A | 75 | 145 |
25A | 85 | 165 |
32A | 95 | 180 |
40A | 100 | 195 |
