Manufacturer
YOOYOUN
Product Type
Machine
Brand
-
SKU
125132
Product Name
Globe Valve
Model Name
YGL-1F
Size
-
Weight
-
Product Details

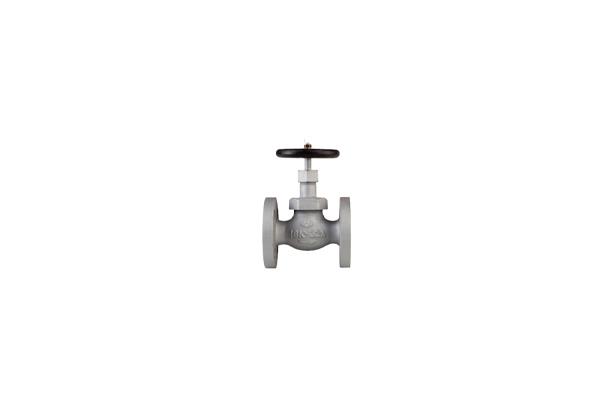

GLOBE VALVE : YGL-1F
- This valve can control a flow with the simple structure.
SPECIFICATION
Category | Content | ||
TYPE | GLOBE | ||
Fluid | Steam / Air / Liquid / Water | ||
Meterial | Body | FCD450 | |
Trim | Stainless steel | ||
Disc | Stainless steel | ||
Design Pressures | 16kgf/cm2 Less than | ||
1.6 Mpa Less than | |||
Design temperature | 220︒C | ||
Connection Code | JIS B2220 FLANGE | ||
DIMENSION
SIZE | L | H |
15A | 110 | 135 |
20A | 120 | 145 |
25A | 130 | 165 |
32A | 160 | 180 |
40A | 180 | 195 |
50A | 205 | 225 |
