Description

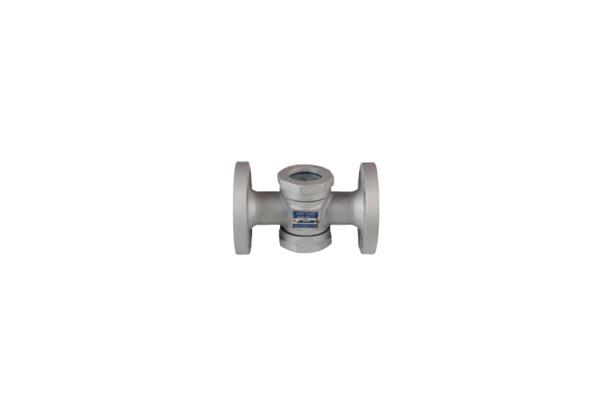

SIGHT GLASS : YSG-1F
- This valve can check the condition of steam trap and prevent back flow.
SPECIFICATION
Category | Content | ||
TYPE | FLAPPER | ||
Fluid | Steam / Air / Liquid /Water | ||
Meterial | Body | FCD450 | |
Trim | Stainless steel | ||
Design Pressure | 10kgf/cm2 Less than | 10 Mpa Less than | |
Design temperature | 220︒C | ||
Connection Code | JIS B2220 FLANGE | ||
DIMENSION
SIZE | L | H |
15A | 150 | 95 |
20A | 150 | 100 |
25A | 170 | 125 |
32A | 200 | 135 |
40A | 200 | 140 |
50A | 220 | 155 |
65A | 260 | 175 |
80A | 260 | 185 |
100A | 300 | 210 |
