Product Name
Temperature Regulating Valve
Model Name
YTR-2F
Size
-
Weight
-
Product Details

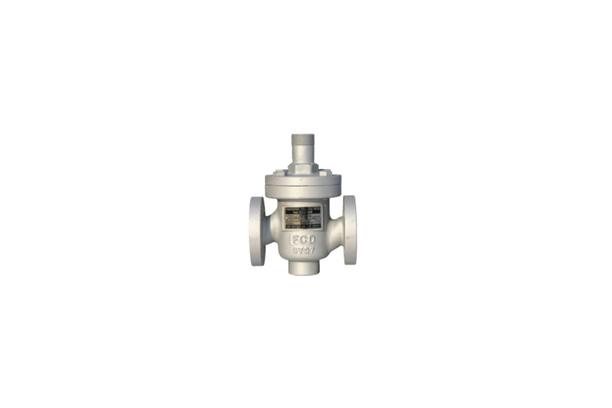

TEMPERATURE REGULATING VALVE : YTR-2F
- This is suitable for such as large size storage tank, heat exchanger.
- This does not need pneumatic or electricity power.
SPECIFICATION
Category | Content | ||
TYPE | DIRECT | ||
Fluid | STEAM | ||
Meterial | Body | FCD450, SC480, BC | |
Trim | Stainless steel, Cast Bronze | ||
Design Pressure | 10kgf/cm2 Less than | 1.0 Mpa Less than | |
Design temperature | 100︒C | ||
Connection Code | JIS B2220 , ANSI B16.5, DIN2511 FLANGE | ||
Basic Accessory | Heat Sensor | ||
DIMENSION
SIZE | L | H | H1 |
15A | 140 | 65 | 140 |
20A | 140 | 65 | 140 |
25A | 150 | 70 | 140 |
32A | 190 | 138 | 212 |
40A | 190 | 138 | 212 |
