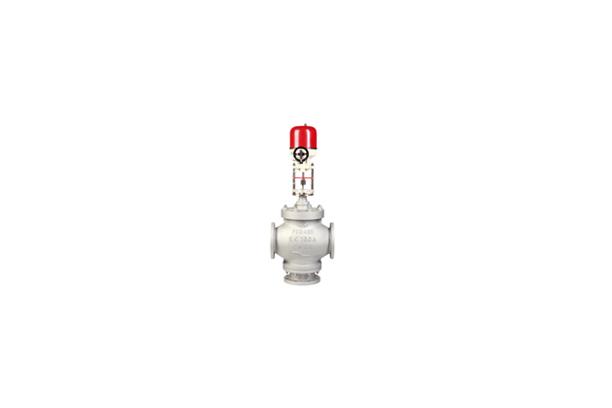

CONTROL VALVE : 3CMC-1F
- This is the valve that control the temperature, pressure and level of a various fluid in main system of ship or plant.
- This valve can do precise control.
- Few change of differential pressure.
SPECIFICATION
Category | Content | ||
TYPE | Electric Motor | ||
Fluid | Water , Steam, Oil, Liquid | ||
Meterial | Body | Carbon Steel , Stainless steel | |
Trim | Stainless steel | ||
Trim Characteristics | Equal Percentage , Linear | ||
Design Pressure | 20kgf/cm2 Less than | 2.0 Mpa Less than | |
Design temperature | 220︒C | ||
Connection Code | JIS B2220 , ANSI B16.5, DIN2511 FLANGE | ||
Basic Accessory | Positioner , Air set , Sensor , Manual Handle | ||
DIMENSION
SIZE | L | H | H1 | H2 |
25A | 150 | 115 | 108 | 494 |
32A | 190 | 133 | 133 | 494 |
40A | 190 | 133 | 133 | 494 |
50A | 222 | 179 | 165 | 554 |
65A | 290 | 200 | 174 | 554 |
80A | 310 | 209 | 202 | 638 |
100A | 350 | 232 | 229 | 638 |
125A | 390 | 266 | 237 | 772 |
150A | 451 | 292 | 285 | 772 |
200A | 567 | 340 | 356 | 978 |
