Product Name STRAIGHT
Model SFS-2
Series PSV for Semiconductor
Catalog
Product Description

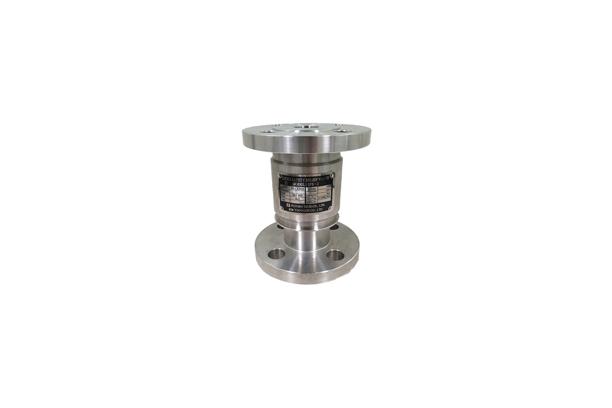

SAFETY RELIEF VALVE : SFS-2

- This is the safety valve of straight type.
- This has improved durability through electro polishing.
- Teflon and E.P type can be applied to the properties of the fluid.
-vThis is certified on safety by KOSHA.




SPECIFICATION

Category

Content

TYPE

LINING (TEFLON) / E.P (Electro Polishing)

Meterial

Body

SCS13

Trim

SUS316L / PTFE

Design Pressure

LINING

0.5 ~ 8.0kgf/cm2

E.P

0.5 ~ 10.0kgf/cm2

Design temperature

50︒C

Connection Code

JIS 10K RF x JIS 10K RF (KS 10K RF x KS 10K RF)

Fluid

N2




DIMENSION

SIZE In x Out

dt

ds

H

20Ax20A

20

21

131

25Ax25A

25

26

144

50Ax50A

38

39

175
