Description

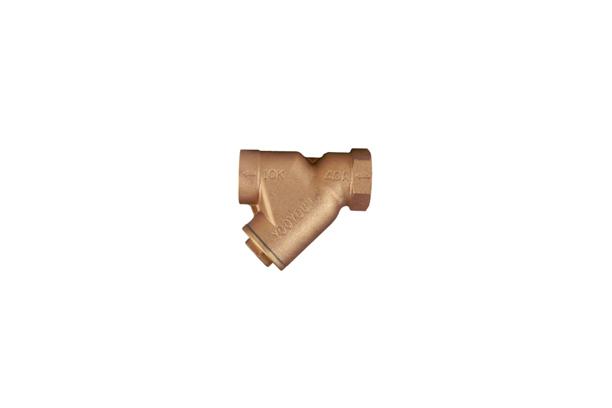

Y-STRAINER : STY-1S
- This is used for getting rid of the impurities.
- This is installed before a various valve.
SPECIFICATION
Category | Content | ||
TYPE | DISC | ||
Fluid | Water , Steam, Oil, Liquid | ||
Meterial | Body | BC / Stainless steel | |
Trim | Stainless steel | ||
Screen | Single / Double | ||
Design Pressures | 20kgf/cm2 less than | ||
2.0 Mpa less than | |||
Design temperature | 220︒C | ||
Connection Code | JIS B0203 THREAD | ||
DIMENSION
TYPE | SIZE | L | H | |
BC6 | 15A | 75 | 50 | |
20A | 85 | 60 | ||
25A | 105 | 75 | ||
32A | 115 | 82 | ||
40A | 135 | 95 | ||
50A | 145 | 105 | ||
STAINLESS STEEL | 15A | 59 | 42 | |
20A | 74 | 52 | ||
25A | 83 | 58 | ||
32A | 103 | 65 | ||
40A | 107 | 73 | ||
50A | 124 | 85 | ||
