Product Name BY-PASS
Model TBP-1S
Series Steam Trap
Catalog
Product Description

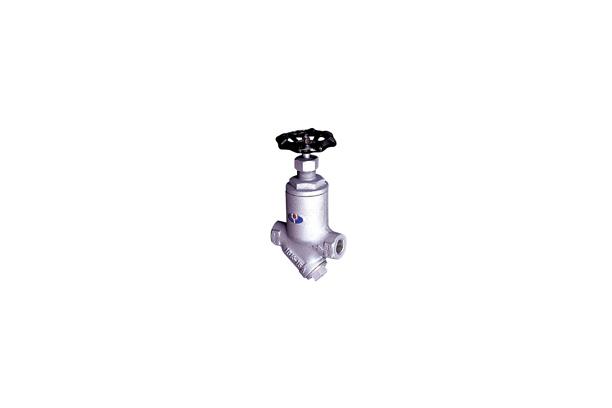

STEAM TRAP : TBP-1S


- This can be used as either by-pass valve or steam trap.

- This structure lower the price of facillities and can be installed narrow space.

- You can check the discharge and control over-discharge by handle.

- Prevent to fault operate due to impurities inner screen.





SPECIFICATION


Category

Content

TYPE

BY-PASS

Meterial

Body

FCD450

Trim

Stainless steel

Working Pressure

0.35 ~ 16.0kgf/cm2

0.035 ~ 1.6 MPa

Design temperature

220︒C

Connection Code

JIS B0203 Thread

Fluid

STEAM




DIMENSION


SIZE

L

H

H1

d(PT)

15A

100

150

58

1/2"

20A

100

150

58

3/4"

25A

110

150

60

1"
