- Pallet Unloader

• Motor : 1.5 HP x 2ea
• Conveyor speed: 16.8 M/Min
• Conveyor: roller dia(Ø 60.5mm), pitch (67mm), Height(300~400mm)
• Chain (2~4boxes)
• Frequency Inverter Control: Danfoss
• Material: Steel SS41 6t
• Color: Per customer request
• Hydraulic Cylinder x 1ea
• Power Pack x 1ea


- Pallet Master

• Maximum pallet size : 1600mm x 1600mm
• Fork Drive: OMP 160
• Fork UP/DOWN: Hydraulic Cylinder 50 x 260 ST
• Main motor : 3Hp
• Automatic operation mode or Manual operation model

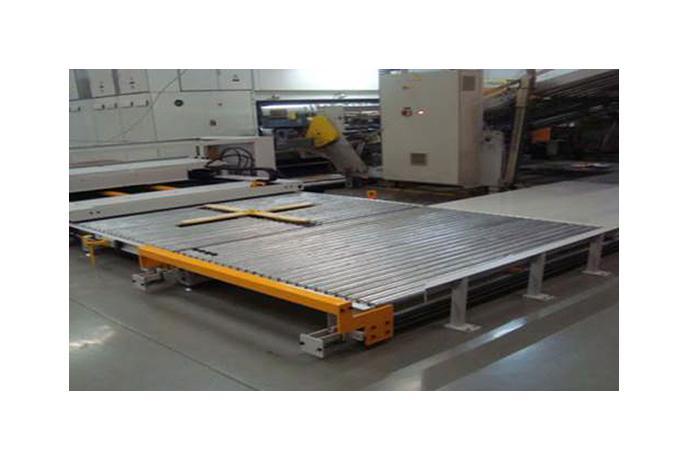

- Pallet Turn Table with Pusher

• Rotation angle: +/- 90°
• Conveyor speed: 16.8 M/Min
• Conveyor: Side roller dia(Ø 60.5mm), pitch (67mm), Height(350~400mm)
• Integrate pallet pusher
• Drive Motor and Danfoss Frequency inverter
• Material: Steel Ss41 6t
• Color: Per customer request


- Pallet Turn Table with Pusher


• Rotation angle: +/- 90° ~180°
• Conveyor speed: 16.8 M/Min
• Conveyor: Side roller dia(Ø 60.5mm), pitch (67mm), Height(350~400mm)
• Integrate pallet pusher
• Drive Motor and Danfoss Frequency inverter
• Material: Steel Ss41 6t
• Color: Per customer request
