Woori Vehicle Washer Co

Woori Vehicle Washer Co

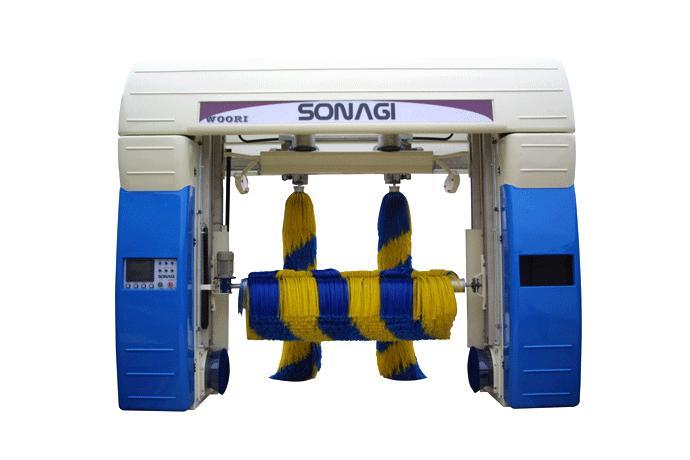

Rollover Type Carwash

Model

Series

Products


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

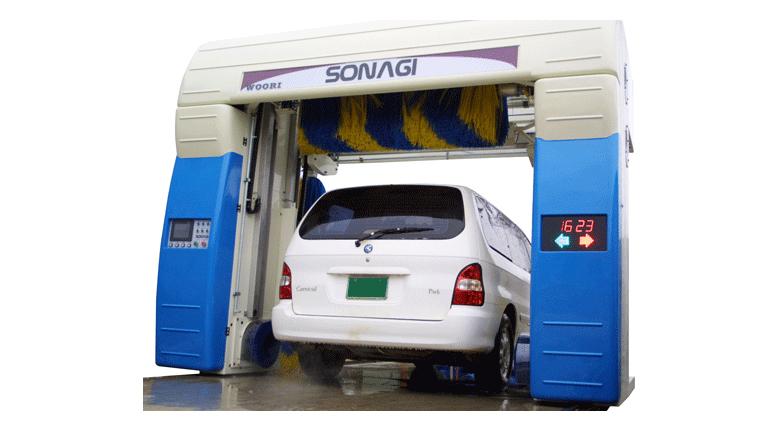

1. Expansion of Vehicle Washing Space

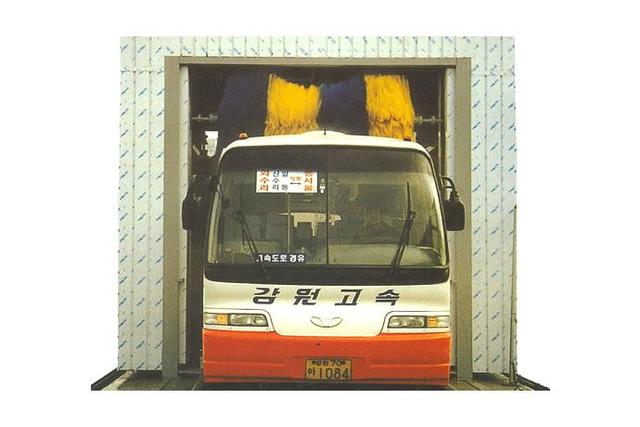

Through expansion of vehicle washing space, JEEPs, VANs, RVs and all vehicles under and including 15 seat vehicles can be washed.

2. Side and Top brush System (Patented)
A new type of washing device that provides optimum vehicle washing ability with the least amount of surface damage, by washing in line with the vehicle body.

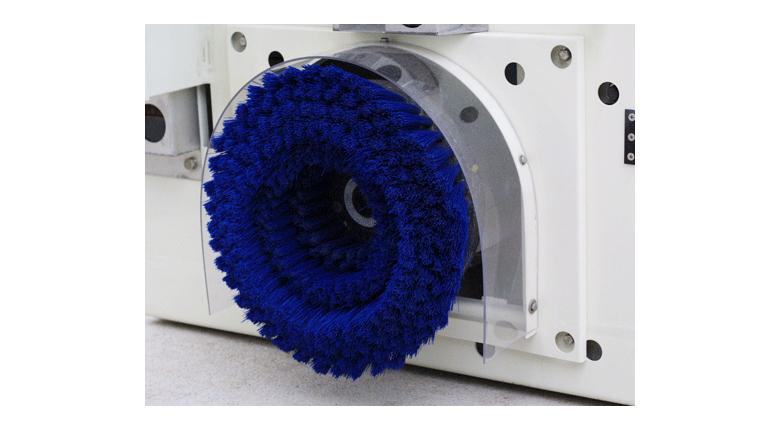

3. Exclusive Tire Washer
Excellent tire-cleaning capability and durability. Minimum vehicle damage, as it exclusively selects the tire for washing.

4. Powerful Drying System (Drying system of highest quality)
Through maximum drying effectiveness, moisture is completely removed even in high-speed washing. One-way drying only, but maximum effectiveness..

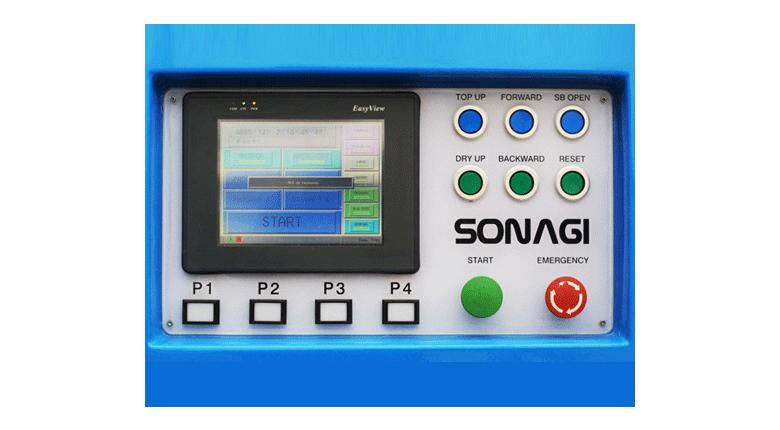

5. Control Panel and Self Test Functionality (8 inch Touch Screen)
Self-Test function allows even the novice operator to analyze the cause of any problems and know the appropriate resolution.

6. Independent Speed Alteration System
Washing and drying speed is adjusted according to vehicle washer's operating status for optimum performance.

7. Winter Freeze-Burst Prevention System
Internally installed temperature sensor drains water automatically to prevent pipe bursts due to cold winter weather. No derailment of the washer (no need for heating device) and the low disposition of the rail allows for convenient vehicle entry and exit, making it a suitable washer for a smaller spaces.

8.  Valve Panel and the Electrical Control Panel
The entire electronic control valve, electrical control device and detergent supply device are situated in one location, making management and inspection convenient.

9. Korean Parts
All parts are Korean made, therefore maintenance and management are inexpensive and convenient.

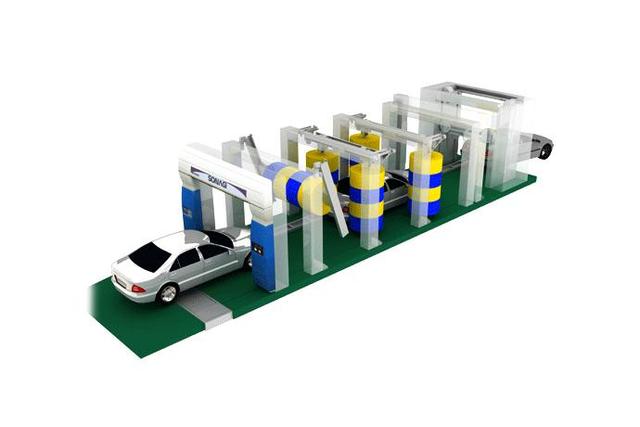

10. High-Speed Vehicle Washing through Chemical Spray Device (Patented)
All necessary chemicals are sprayed in a single, one-way application, and an improved washing capability and drying process makes high-speed vehicle washing possible. Washing time has been decreased dramatically (1/2 - 1/3) compared to other vehicle washers, allowing high amounts of washing in a narrow space.

11. Vehicle Washing of Lower Part Exclusive for Door-Type Vehicle Washer (patented)
Vehicle "lower part" washer washes the lower parts of the vehicle perfectly.

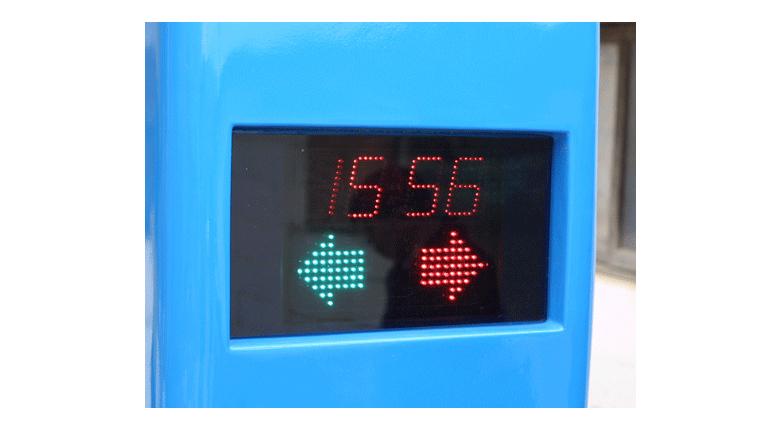

12. Various Safety Devices and Signal Lights
In order increase the safety of the vehicle washer, sensors have been placed in various spots to help to prevent accidents, and bright LED lamps display the machine status to the driver or to the operator.


ClassificationDetailsFeatures

Body dimension (meter)

W: 3.8M x H: 3.0M x L: 2.2M

Default
Ultra-high washing
Side brush (1)
Top brush (2)
Timer carwash
Self-diagnostic function
Auto drainage function
Foam generator
Interactive LCD indicator
Front light & Watch
Automatic dilutor for detergent

Option
Bottom Washing Apparatus



Rail length, width (meter)

9.5M - 9.8 X 3.27M

Space for body installation

W: 4.2M x H: 3.2M x L: 10M

Power

380VAC 3 phase 5 line (3P+N+G) 28KW

Washing Course

4 steps (speed: 8 type)

Washing Time

1 min and 35 sec or above

Allowable vehicle size

W: 2.3M H: 2.1M

Washable vehicle

Passenger Car, JEEP, Bus (15 persons or below)

Drug supply (Metering Pump)

Foam, shampoo, wax, dry

Drug injection system

Default

Foam Generator

Default

Anti-freezing system

Default

Indicator (LCD)

8 inch color (touch screen)

Washing material content

70L~ ( 1HP 1.5KG )

Supply air pressure

6KG~( 5HP  6~8KG)

Bottom Washing Apparatus

Option

ClassificationDetailsQuantity

CPU

PLC control

1SET sensor DC24V   out AC220VAC

Brush

Top brush

1EA (Load monitoring method)

Side brush

2EA (Load monitoring method)

Tire brush

2EA (Timer washer only) 0.2kw X 2EA

Dryer

Top dry blow

2P 5.5kw X 2 (Sirrico Fan)

Side dry blow

2P 5.5kw X 2

Lift speed

Top brush lift )

0.75kw ( 160mm/sec )  inverter control

Top dry lift

0.75kw ( 160mm/sec )

Washing speed

Multi-step speed control

0.37kw X 2EA

Drug supply

Foam, shampoo, wax, dry
(Metering Pump)

Single-phase 220VAC

Drug injection system

Cylinder control way

1200mm

Water consumption

Fresh water (1 HP)

70L~ 1.5KG or above

Compressed air Consumption

Compressed air (5.5 HP)

80L~ 6.0KG or above

Bottom Washing Apparatus

Feed drive motor

0.2kw ( 250mm/sec )

High pressure water pump

5.5kw ( 150bar )
