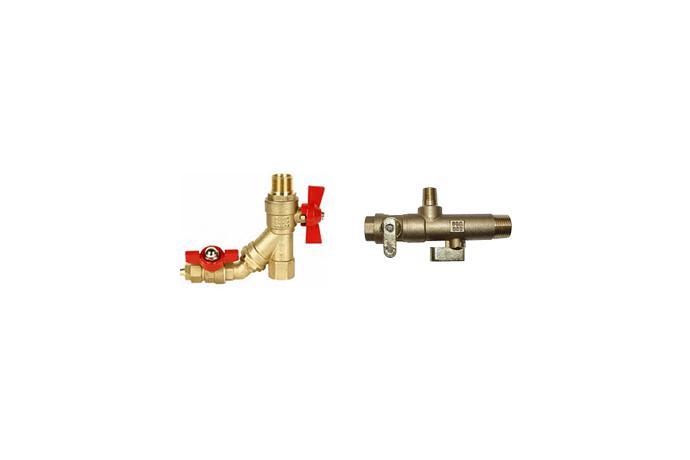

Product Name Attachable Valve Strainer
Model WRST-15-I, WRST-15-Y, WRST-20-Y
Series Attachable Valve Strainer
Catalog Strainer with cleaning valve.pdf
Product Description

Special Feature

- The installation in the front of trap is certainly necessary.

- No need another valve as the picture show the service valve is in the strainer

- Impurities such as scale can be discharged by opening the cleaning valve on the strainer







Specification

MODEL

INLET SIZE

OUTLET SIZE

Cleaning V/V

Using Comp.

Using Temp.

WRST-15-I

1/4" ,1/2"

1/4"

1/4"

0 ~40 kgf/

2 ~ 70 ℃

WRST-15-Y

1/2"

1/2"

WRST-20-Y

3/4"

3/4"

3/8"

















Dimension
