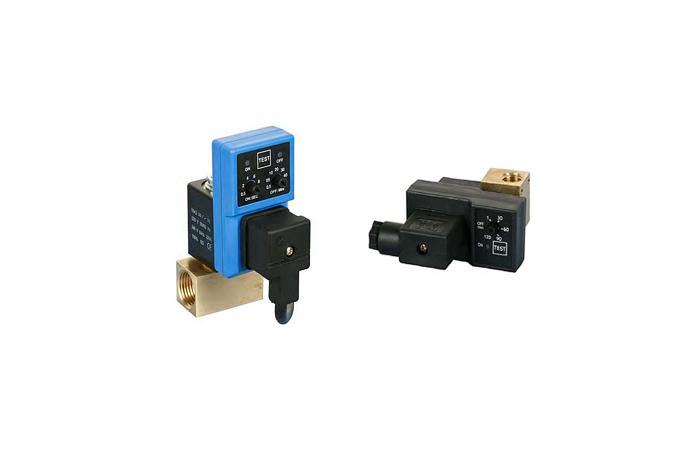

Product Name Timer Type Power Drain Trap (Electric)
Model WRET-08, WRET-10, WRET-15
Series Power Drain Trap (Electric)
Catalog Electric Drain Trap.pdf
Product Description

Advantages

- Visible working status (LED lamp)

- Spot check available with test button regardless of actual working.

- Open/close start can be controlled by timer setting.

- Free installation regardless of direction.

- Low freezing risk by the complete removal of remaining condensed water.

- High reliable working by using coil acquired CE mark.

- Clogging & cleaning can be solved at a time by using strainer sticked cleaning valve.



SPECIFICATION

MODEL

IN/OUT

Power

Pressure

Temp.

Capacity

Open time

Delay time

WRET-08

1/4"(8A)

220V 1PH
50/60Hz

0 ~16 kgf/㎠
(Basic Spec.)

2 ~ 55 ℃

100 liter/hr

2 sec

120 min

WRET-10

3/8"(10A)

150 liter/hr

1~10 sec

45 min

WRET-15

1/2"(15A)













※ The strainer sticked cleaning valve is included to the above basic spec.





Installation

- Remove pressure before installation.

- Install the lamp in sight for maintenance.

- Follow the install directions on the drain trap.(Refer to the arrow on the bod

- Do not overpower to coil, timer, connecter and others except for body.

- The strainer is certainly necessary to the front of trap. (Over #50 of screen)

- Check the power and connect.

- Push the test button and check how it works and set the timer.







Dimensions

1. High pressure trap(25,40,80 kgf/㎠) is made it a custom to do.

2. The supplied strainer is surely to be installed to the whole space of trap to avoid malfunction by solid debris. (If not so, free warranty is not allowed)

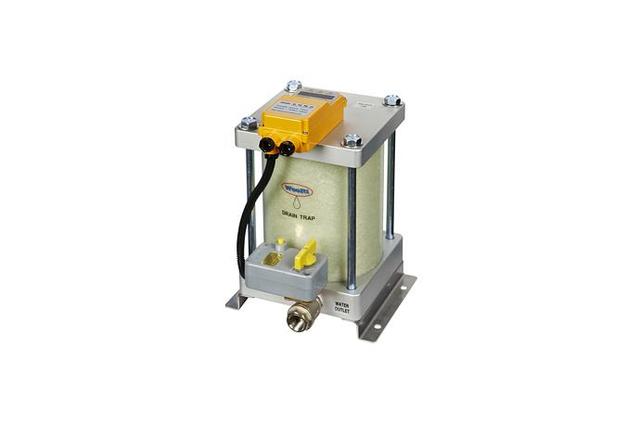

Products of Woori TECH
