This product is manufactured by
WOONYOUNG

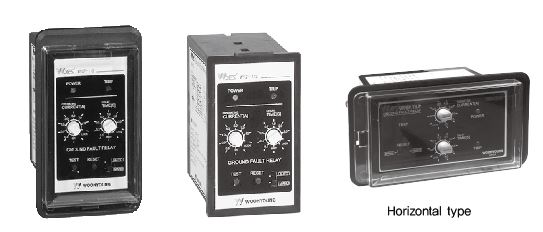

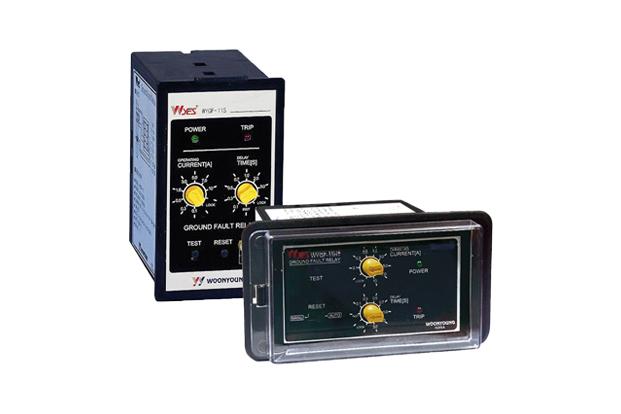

Ground Fault Relay (Analog-1ch type)
Model Name
WYGF-11S
Data
Catalog-WOONYOUNG-Ground Fault Relay (Analog-1ch type)
Manufacturer information
WOONYOUNG
Various electronic control equipment manufacturer, UL transformer, UL trans, NCT, Reactor, SSR, TPR, SMPS, SPD, Noise filter and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
WOONYOUNG
Product Type
Machine
Brand
-
SKU
132647
Product Name
Ground Fault Relay (Analog-1ch type)
Model Name
WYGF-11S, WYGF-21S, WYGF-11T, WYGF-21T, WYGF-11HT
Size
-
Weight
-
Product Details
| Model No | WYGF-11S WYGF-21S WYGF-11T WYGF-21T WYGF-11HT |
|---|---|
| TYPE | Analogue type (1ch) |
| Certification | |
| Rating | AC110/220V (DC88∼260V option) |
| Input | 0.1-0.3-0.5-1 -3-5-7-10 -Lock(A) 10-15-20-25 -30-35-40-50 -Lock(A) |
| Output | 1ch |
| Capacity |
Specifications and Features
This is the leakage(grounding) relay which is possible for setting the broad functions of light grounding and heavy grounding in general industrial uses selecting analog system and is AGFR used in the existing lines of KEPCO, subway, factory, building and plant. This earth leakage relay is made for alarm system and trip element composed of zero phase sequence current transformer(ZCT).
ㆍIndicating the leaked (grounding) state of electric lines on the lamp(LED)
ㆍEasy setting with 2 kinds of set for panel fixed type and nozzle type of socket shape

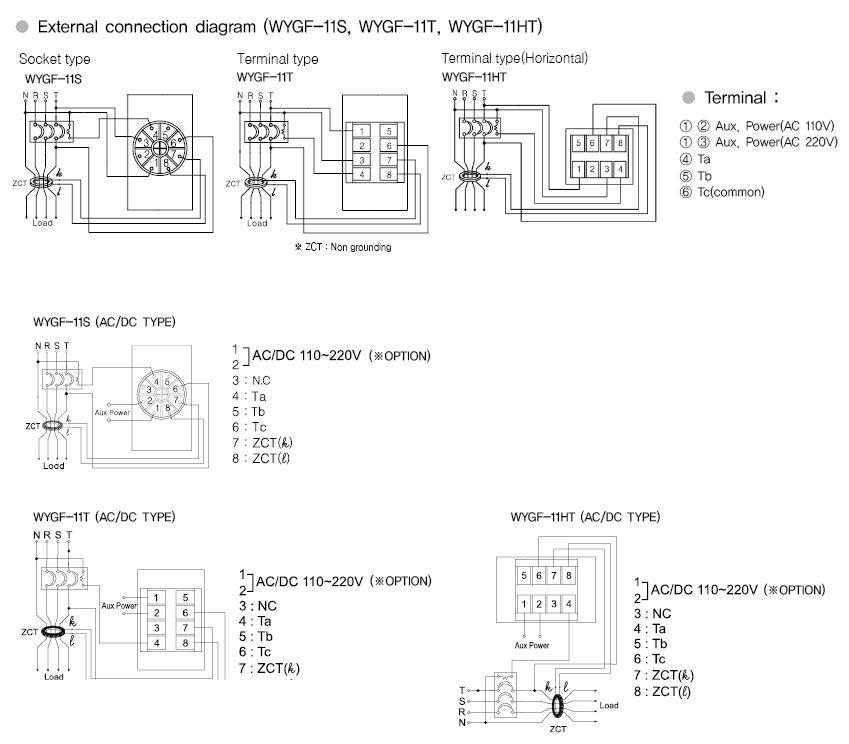

ㆍProtecting the ground combined with zero phasesequence current transformer (ZCT) by using the isolated device such as MCCB
