This product is manufactured by
WOONYOUNG

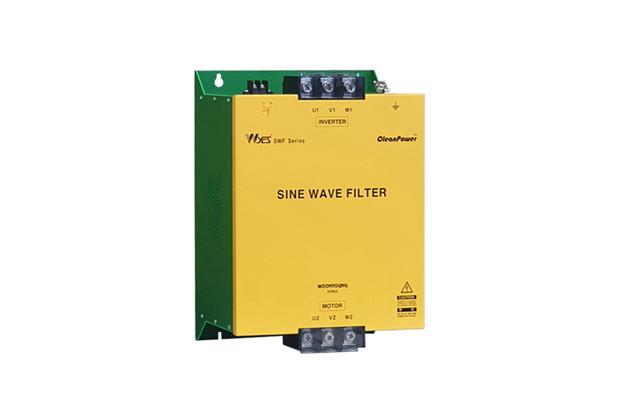

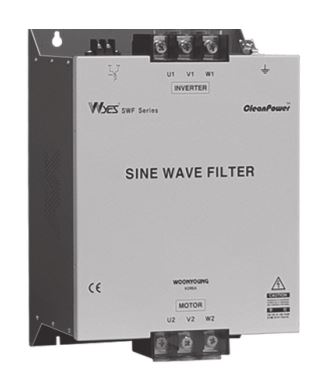

Sine-Wave Filter (Wall Mount Type)
Model Name
WYSWF401C-1.5
Data

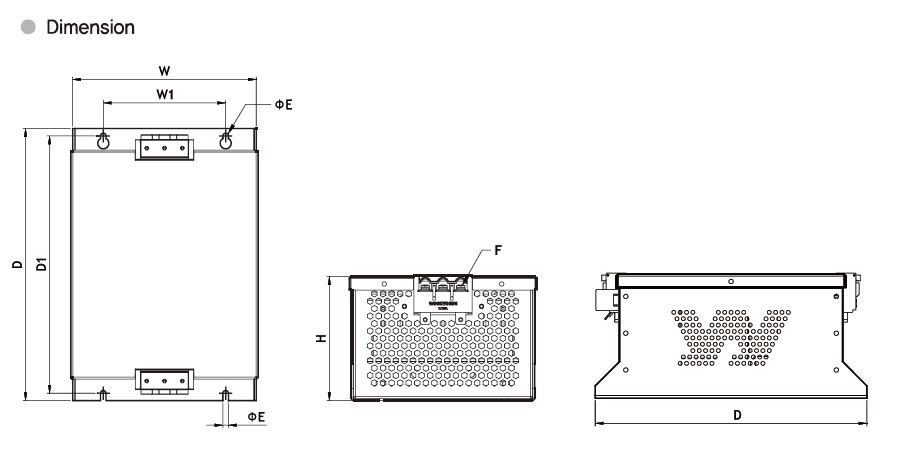

WYSWF401C-1.5_3.7KW.DWG
Manufacturer information
WOONYOUNG
Various electronic control equipment manufacturer, UL transformer, UL trans, NCT, Reactor, SSR, TPR, SMPS, SPD, Noise filter and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
WOONYOUNG
Brand
-
SKU
132514
Product Name
Sine-Wave Filter (Wall Mount Type)
Model Name
WYSWF401C-1.5, WYSWF401C-2.2, WYSWF401C-3.7, WYSWF401C-5.5, WYSWF401C-7.5, WYSWF401C-11, WYSWF401C-15, WYSWF401C-18.5, WYSWF401C-22
Size
-
Weight
-
Product Details

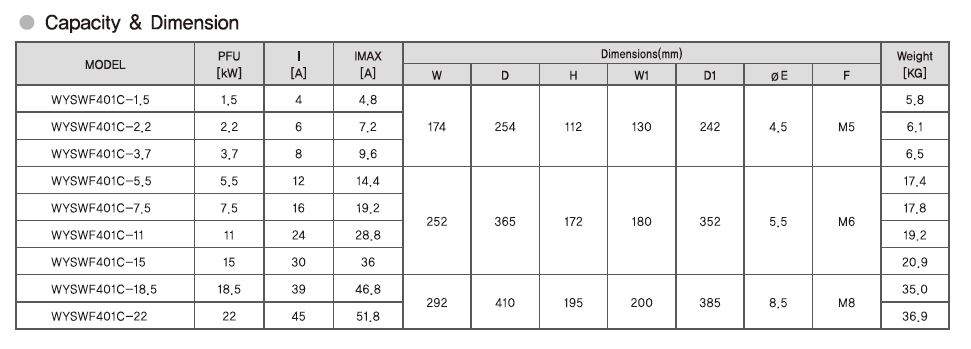

| Model No | WYSWF401C-1.5 WYSWF401C-2.2 WYSWF401C-3.7 WYSWF401C-5.5 WYSWF401C-7.5 WYSWF401C-11 WYSWF401C-15 WYSWF401C-18.5 WYSWF401C-22 |
|---|---|
| TYPE | Wall Mount Type |
| Certification | |
| Rating | 380VAC~480VAC |
| Input | 380VAC~480VAC |
| Output | 4A~91A |
| Capacity | 1.5kW~45kW |

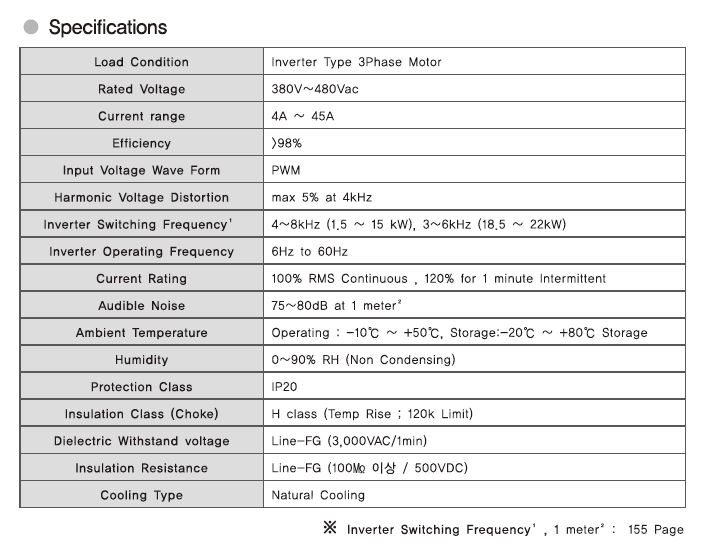

Specifications and Features
The sine wave filter for 50/60Hz is designed in a perfect sine wave form to provide the highest level of protection to the motors by converting the output of the VFD into a value that is closest to a sine wave. The performance and efficiency of this filter is higher than that of the existing LC filter. And, they are designed to provide a sine wave form output voltage when operated by a PWM inverter with a conversion frequency of 4kHz to 8kHz.
3-phase 400VAC (UMAX=480V), FMAX=60Hz. FS=4~8kHz (Wall Mount Type)
