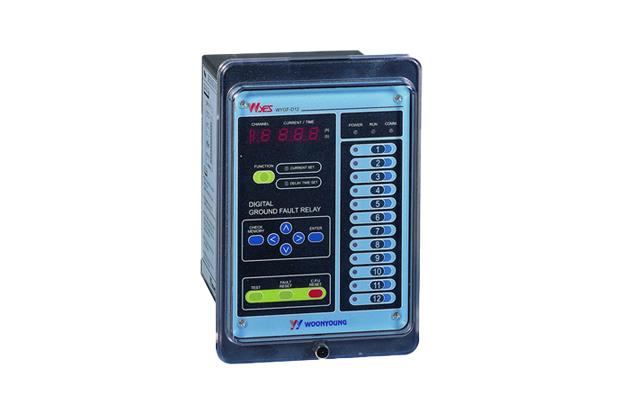

| Model No | WYGF-D06 WYGF-D12 WYGF-D06C WYGF-D12C |
|---|---|
| TYPE | Digital-Multifuctional type (6ch, 12ch) |
| Certification | |
| Rating | AC/DC110~220V |
| Input | 0.1A~10A |
| Output | 6ch 12ch |
| Capacity |

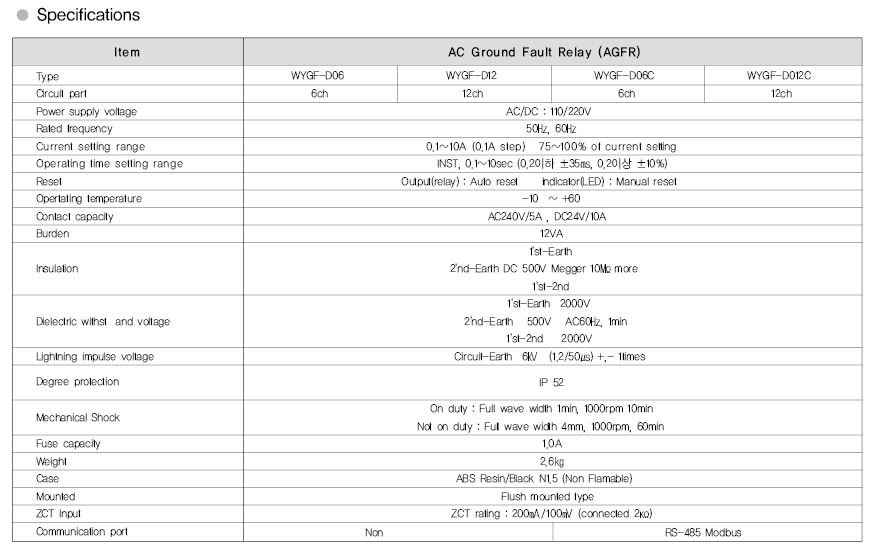

Specifications and Features
This relay is composed of high fidelity and high function circuit by selecting digital system of the leaked(grounding) relay according to the production of KSC8328. This is AGFR which is possible for setting the broad functions of light grounding and heavy grounding in general industrial and in the existing lines of KEPCO, subway, factory, building and plant.
In addition, it has the wideselection range composed of 1 circuit and 12 circuits and is compatible to design specifications, and the existing method uses auxiliary relay box.
However, this new relay is specially designed for using CB and MCCB from the outside and direct connection, has the 20% of cost effect and made for alarm system and trip element composed of zero phase sequence current transformer(ZCT).
ㆍIndicating the grounding(leaked) state of the electric line by detector and digital numbers (FND) in each circuit
ㆍCan analyze the after-trouble state by storing the MEMORY of the ground circuit, ground capacity and ground line
ㆍCan detect the internal circuit and software with self diagnosis function
ㆍNo influence from the outside due to the built-in internal circuit for surge
ㆍCan have remote circuit detection with the built-in internal RS-465 communic
