This product is manufactured by
WOONYOUNG

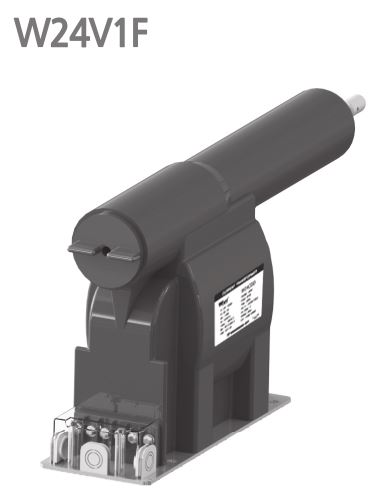

Eathed type Voltage Trans (EVT Type)
Model Name
W24V1F
Data
Catalog-WOONYOUNG-Medium Voltage-Eathed type Voltage Trans-W24V1F
Manufacturer information
WOONYOUNG
Various electronic control equipment manufacturer, UL transformer, UL trans, NCT, Reactor, SSR, TPR, SMPS, SPD, Noise filter and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
WOONYOUNG
Product Type
Machine
Brand
-
SKU
132585
Product Name
Eathed type Voltage Trans (EVT Type)
Model Name
W24V1F
Size
-
Weight
-

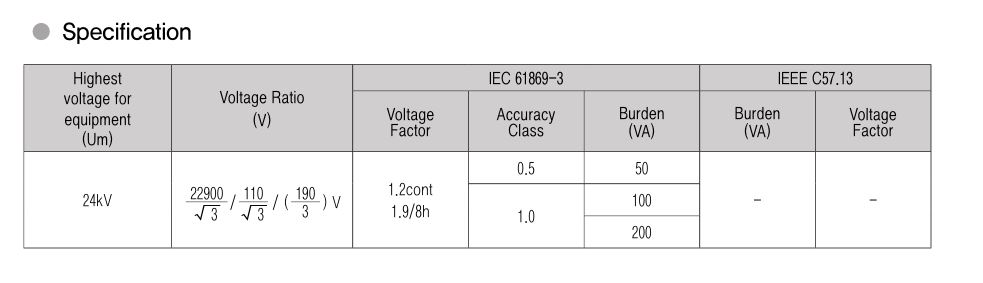

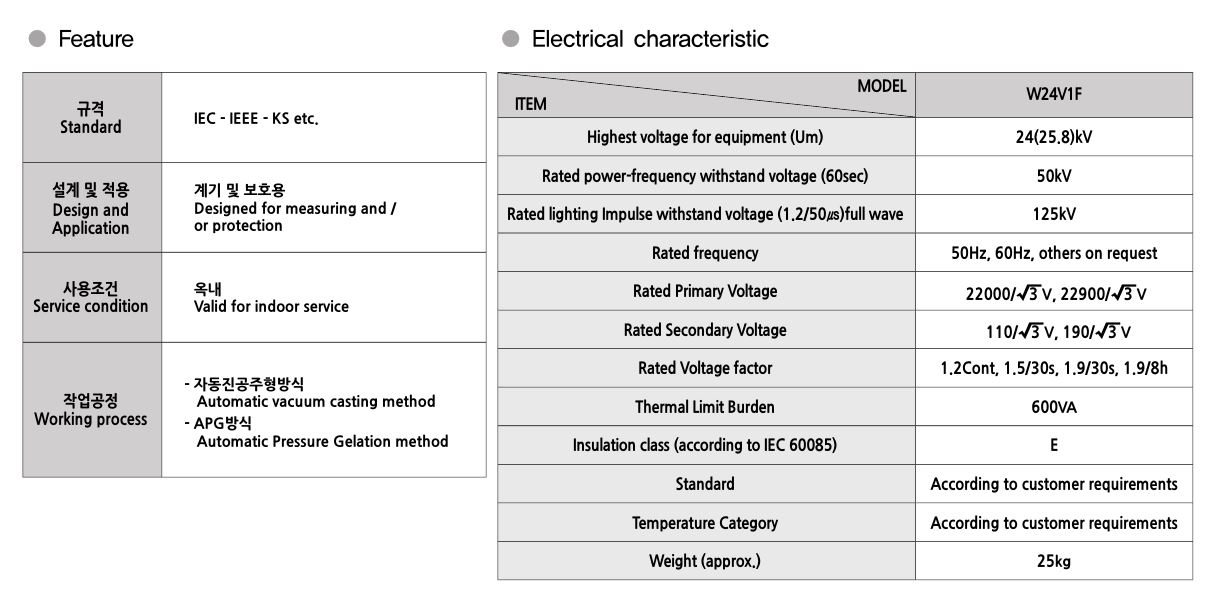

Product Details
| Model No | W24V1F |
|---|---|
| TYPE | EVT type |
| Certification | |
| Rating | 24(25.8)kV |
| Input | 22000V/√3, 22900V/√3 |
| Output | 110/√3, 190/√3 |
| Capacity | 50~200VA |
Specifications and Features

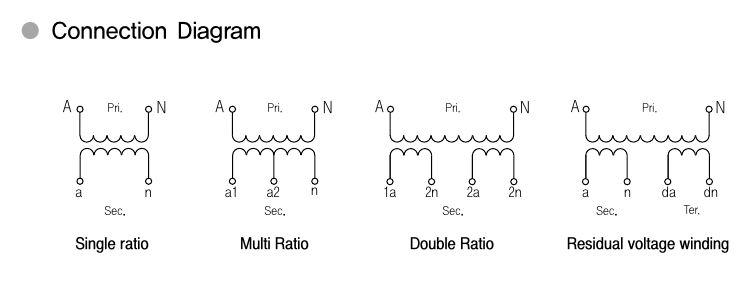

The W24V1F voltage transformer is an indoor epoxy resin cast product with fuses, designed in a maximum circuit voltage 24kV-class insulation performance, that has a stable insulation capacity and electrical property, has excellent mechanical safety, and is easy to maintain. In addition, this can be designed in products with single of multiple taps.
