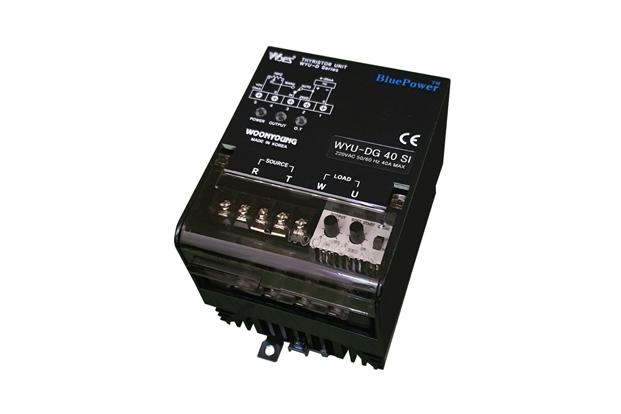

product Image
Thyristor Unit 1Phase 220~440V(DG/DH type)
Model Name
WYU-DG25SI
Series
Thyristor Unit
Data
DG25_50SI.dwg
Manufacturer information
provider logo
WOONYOUNG

Various electronic control equipment manufacturer, UL transformer, UL trans, NCT, Reactor, SSR, TPR, SMPS, SPD, Noise filter and more

Problem with product info?
Update request
Manufacturer
WOONYOUNG
Brand
-
SKU
131723
Product Name
Thyristor Unit 1Phase 220~440V(DG/DH type)
Model Name
WYU-DG25SI, WYU-DG40SI, WYU-DG50SI, WYU-DH25SI, WYU-DH40SI, WYU-DH50SI
Size
-
Weight
-
Product Details
Model No WYU-DG25SI WYU-DG40SI WYU-DG50SI WYU-DH25SI WYU-DH40SI WYU-DH50SI
TYPE 1Phase 220V~440V
Certification
Rating 220VAC 380VAC 440VAC
Input 1V~5V 4~20mA
Output 220VAC 380VAC 440VAC
Capacity 25A 40A 50A

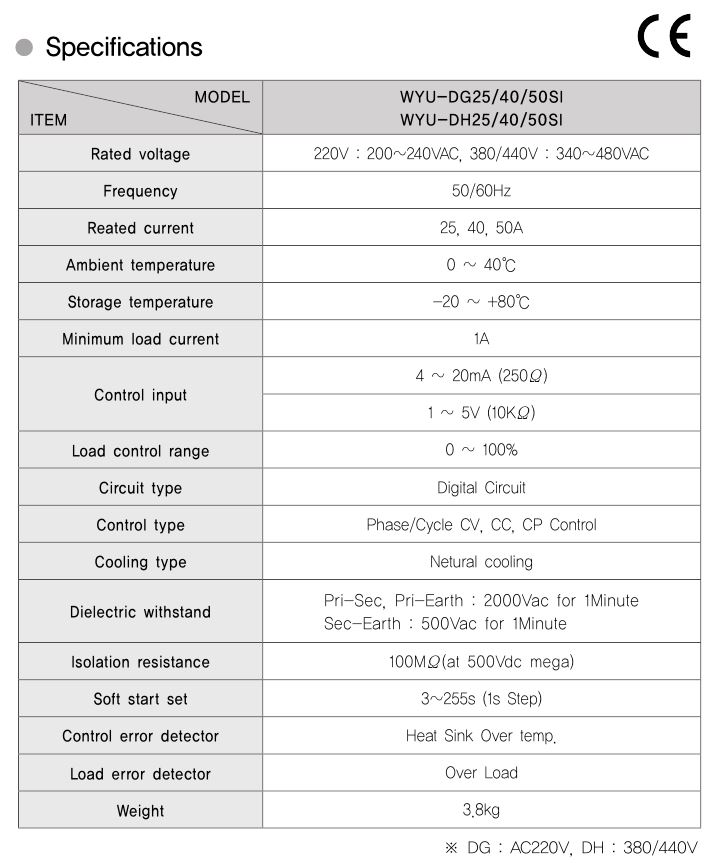

Specifications and Features

This product is internally equipped with both phase control and cycle control to be easily set and installed at a site, can control load currents over 25~50A at AC220V, 380/440V and can set a soft start function to raise trust against load burning and for product lifespan.
