This product is manufactured by
WOONYOUNG

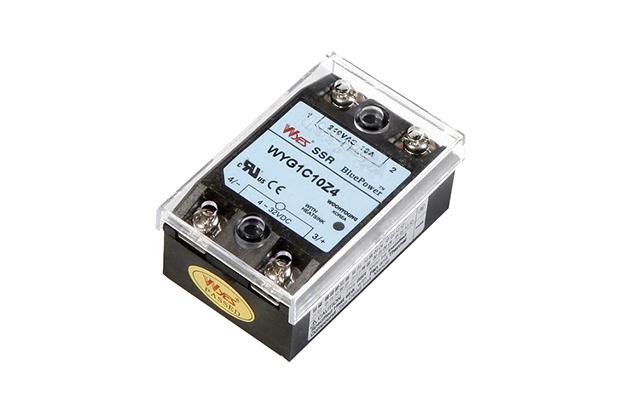

Solid State Relay (1P-AC Load type)
Model Name
WYG1C10Z4
Data
1P_GH1C10_80A.dwg
Manufacturer information
WOONYOUNG
Various electronic control equipment manufacturer, UL transformer, UL trans, NCT, Reactor, SSR, TPR, SMPS, SPD, Noise filter and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
WOONYOUNG
Product Type
Machine
Brand
-
SKU
131634
Product Name
Solid State Relay (1P-AC Load type)
Model Name
WYG1C10Z4, WYG1C20Z4, WYG1C30Z4, WYG1C40Z4, WYG1C50Z4, WYG1C60Z4, WYG1C80Z4, WYG1C10R40, WYG1C20R40, WYG1C30R40, WYG1C40R40, WYG1C50R40, WYG1C60R40, WYG1C80R40, WYG1C10Z40, WYG1C20Z40, WYG1C30Z40, WYG1C40Z40, WYG1C50Z40, WYG1C60Z40, WYG1C80Z40, WYG1C10R40, WYG1C20R40, WYG1C30R40, WYG1C40R40, WYG1C50R40, WYG1C60R40, WYG1C80R40
Size
-
Weight
-

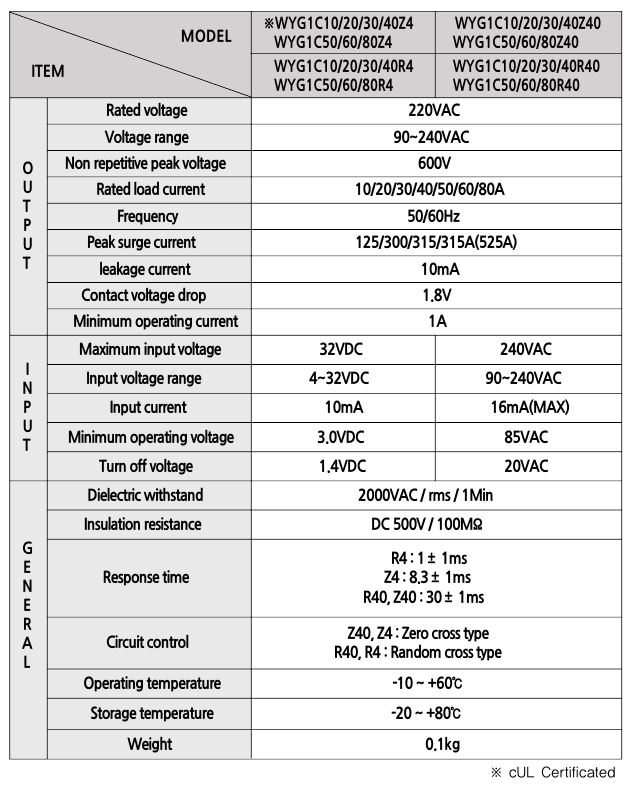

Product Details
| Model No | WYG1C10Z4 WYG1C20Z4 WYG1C30Z4 WYG1C40Z4 WYG1C50Z4 WYG1C60Z4 WYG1C80Z4 WYG1C10R40 WYG1C20R40 WYG1C30R40 WYG1C40R40 WYG1C50R40 WYG1C60R40 WYG1C80R40 WYG1C10Z40 WYG1C20Z40 WYG1C30Z40 WYG1C40Z40 WYG1C50Z40 WYG1C60Z40 WYG1C80Z40 WYG1C10R40 WYG1C20R40 WYG1C30R40 WYG1C40R40 WYG1C50R40 WYG1C60R40 WYG1C80R40 |
|---|---|
| TYPE | WYG type (UL) |
| Certification | CE cUL UL |
| Rating | 220VAC |
| Input | 4VDC~32VDC 90VAC~240VAC |
| Output | 220VAC |
| Capacity | 10A 20A 30A 40A 50A 60A 80A |
Specifications and Features
These product series have acquired UL certification. They carry capacity of AC90~240V 10~80A, and are used on resistive load (Z type) and on general inductive load. These SSR feature an LED that can identify the state of power ON/OFF according to input control.
• cUL Std. No : UL508
