This product is manufactured by
WOONYOUNG

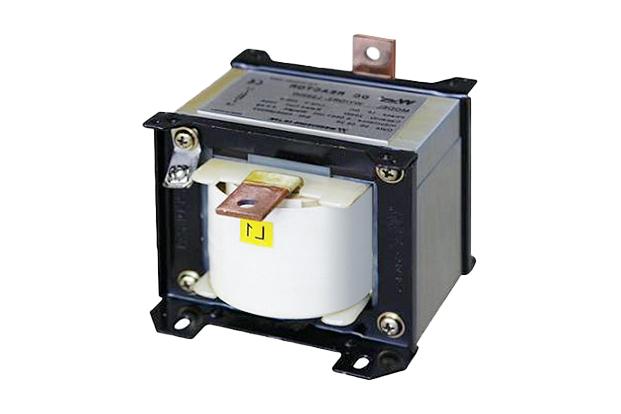

DC Reactor Choke
Model Name
WYDCL4-0.75 WYDCL4-1.5 WYDCL4-2.2 WYDCL4-3.7
Data
-
Manufacturer information
WOONYOUNG
Various electronic control equipment manufacturer, UL transformer, UL trans, NCT, Reactor, SSR, TPR, SMPS, SPD, Noise filter and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
WOONYOUNG
Product Type
Machine
Brand
-
SKU
131571
Product Name
DC Reactor Choke
Model Name
WYDCL4-0.75 WYDCL4-1.5 WYDCL4-2.2 WYDCL4-3.7, WYDCL4-5.5, WYDCL4-7.5, WYDCL4-11, WYDCL4-15, WYDCL4-18.5, WYDCL4-22, WYDCL4-30, WYDCL4-37, WYDCL4-45, WYDCL4-55, WYDCL4-75, WYDCL4-90, WYDCL4-110, WYDCL4-132, WYDCL4-160, WYDCL4-185, WYDCL4-220
Size
-
Weight
-
Product Details

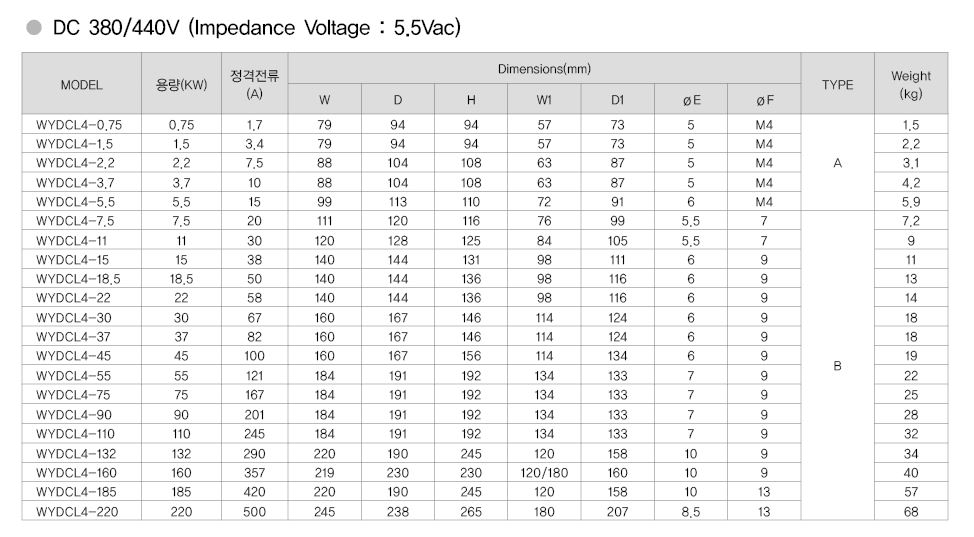

| Model No | WYDCL4-0.75 WYDCL4-1.5 WYDCL4-2.2 WYDCL4-3.7 WYDCL4-5.5 WYDCL4-7.5 WYDCL4-11 WYDCL4-15 WYDCL4-18.5 WYDCL4-22 WYDCL4-30 WYDCL4-37 WYDCL4-45 WYDCL4-55 WYDCL4-75 WYDCL4-90 WYDCL4-110 WYDCL4-132 WYDCL4-160 WYDCL4-185 WYDCL4-220 |
|---|---|
| TYPE | DC Filter (Choke) |
| Certification | |
| Rating | DC-380 DC-440 |
| Input | DC-380 DC-440 |
| Output | 1.7A~500A |
| Capacity | 0.75kVA~220kVA |

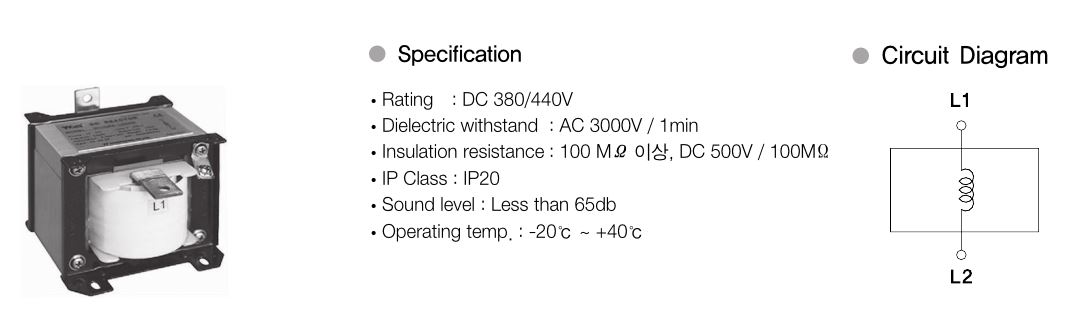

Specifications and Features
• Rating : DC 380/440V
• Dielectric withstand : AC 3000V / 1min
• Insulation resistance : 100 MΩ 이상, DC 500V / 100MΩ
• IP Class : IP20
• Sound level : Less than 65db
• Operating temp. : -20℃ ~ +40℃
