This product is manufactured by
WOONYOUNG

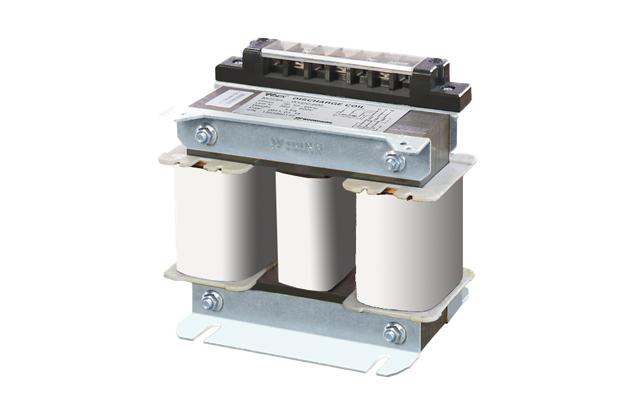

Low, High Volt. Discharge Coil (Dry Type)
Model Name
WYDC-600
Data
Catalog-WOONYOUNG-Hi & Low Voltage Reactor-LV-Reactor Discharge coil WYDC-600
Manufacturer information
WOONYOUNG
Various electronic control equipment manufacturer, UL transformer, UL trans, NCT, Reactor, SSR, TPR, SMPS, SPD, Noise filter and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
WOONYOUNG
Brand
-
SKU
131568
Product Name
Low, High Volt. Discharge Coil (Dry Type)
Model Name
WYDC-600
Size
-
Weight
-
Product Details
| Model No | WYDC-600 |
|---|---|
| TYPE | Dry Type |
| Certification | |
| Rating | 600V |
| Input | 600V |
| Output | - |
| Capacity | - |
Specifications and Features
The discharge coil for the low voltage static capacitor is the discharge coil for the capacitor used for the purpose of the short-term discharge to control the overvoltage generated from the fast automatic control re-input due to the residual charge remaining in the condenser when opening the condenser from the circuit and to secure the safety on the human contact.
