Ultrasonic Cleaning Machine, Dry, Water, High Pressure Spray, Shuttle Type Washing machine and more

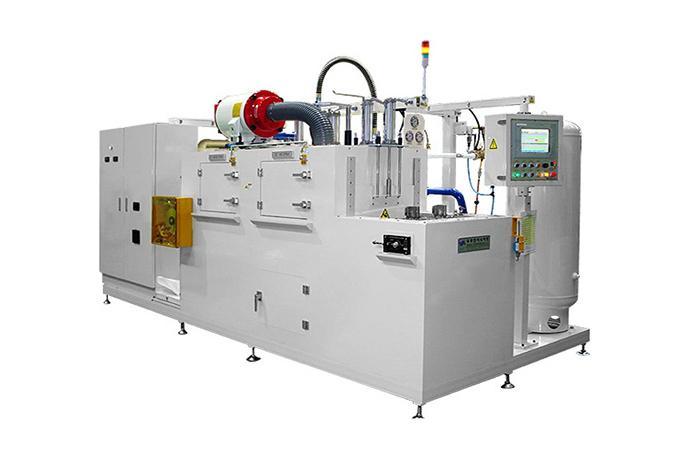

Auto Spray Washing M/C is a device that washes chips and oil on the processed parts and products with alkaline spray before using air cutting to dry the liquid on the product.
Because the device can connect processes in a small space, it can minimize the number of operators, and it can host various protective equipment for safe working environment.
- Washing automobile parts, steel making parts, and other parts
Recommended Pressure
- 1 ~ 300 Bar
- Washing Process
- Insertion – Wash – Air Spray (Hot Air) - Discharge (Washing process may change depending on cleanliness setting)
- Dirty & clean tank
- Washing temperature : 60℃
- Filtering pump installed
- Filter housing : 5 ~ 50 Micro (select)
- Oil skimmer : Belt type
- Targeting nozzle installed
- Air receiver tank installed
- Air heater must be ordered separately
Applied Parts
This device automates the insertion and discharge area, which can be connected to testing equipment.
- Washing automobile parts, electronic parts, and other parts
Operating Pressure
- 50 ~ 150 Bar
Washing Process
- Automatic insertion – Ultrasonic wave wash – Spray Washing - Air Spray (Hot Air) – Hot Air Spray - Discharge (Washing process may change depending on cleanliness setting)
- Dirty & clean tank
- Washing temperature : 60℃
- Filtering pump installed
- Filter housing : 5 ~ 50 Micro (select)
- Oil skimmer : Belt type
- Targeting nozzle installed
- Air receiver tank installed
- Air heater must be ordered separately
Applied parts

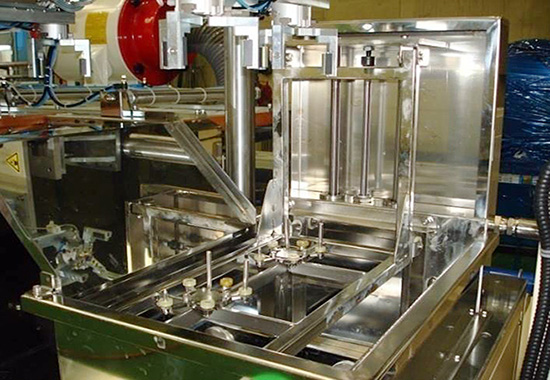

Primary ultrasonic washing process
Ultrasonic unit installed → Filter pump & housing installed → Shaking and up-down devices installed
