WOOJIN SERVO
WOOJIN SERVO

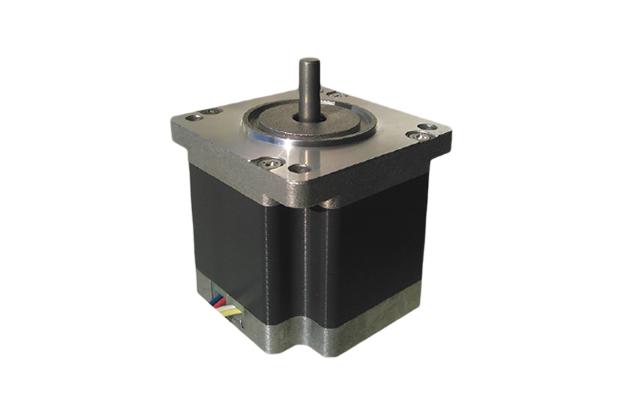

Description

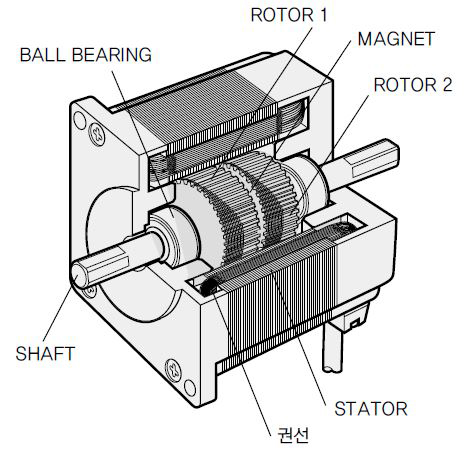

Product Kinds
| Step Angle : | 1.8 |
| Voltage : | 3.08~3.92V |
| Current : | 2.8A |
| Holding Torque : | 1.95~2.4 (N/m) |
| Inductance : | 3.3~3.8 (mH/Phase) |
| Rotor Inertia : | 520~680(g/cm²) |
■ Applications
SINGLE SHAFT
| MODEL |
|---|
| KH6054-B9510□ |
| KH6065-B9510□ |
■ FEATURES
High Torque (Up at Peak time 15 to 20% higher than our previous products)
■ SPECIFICATIONS
| STEP ANGLE °/step |
VOLTAGE V |
CURRENT A/PHASE |
WINDING RESISTANCE Ω/PHASE |
INDUCTANCE mH/PHASE |
HOLDING TORQUE (Measured value) N・m |
ROTOR INERTIA g・㎠ |
MODEL |
|---|---|---|---|---|---|---|---|
| 1.8 | 3.08 | 2.8 | 1.1 | 3.3 | (1.95) | 520 | KH6054-B9510□ |
| 1.8 | 3.92 | 2.8 | 1.4 | 3.8 | (2.4) | 680 | KH6065-B9510□ |
Note：KH60 is ready to two mounting dimensions.
| □ End of model name | Mounting hole pitch | Mounting inlay diameter |
|---|---|---|
| 1 | 47.14 | φ38.1 |
| 2 | 50 | φ36 |
■ GENERAL SPECIFICATIONS
| INSULATION RESISTANCE | 500V DC 100MΩ min（. at normal temp.& humidity,between lead and case) |
|---|---|
| DIELECTRIC STRENGTH | 500V AC 50Hz 1min（. at normal temp.& humidity,between lead and case) |
| AMBIENT TEMP. AND HUMIDITY | -10℃～+50℃、5%～95%RH（noncondensing) |
| STORAGE TEMP.AND HUMIDITY | -20℃～+70℃、5%～95%RH（noncondensing) |
| TEMPERATURE. RISE | 70K max（By resistance method) |
| POSITION ACCURACY | ±10% |

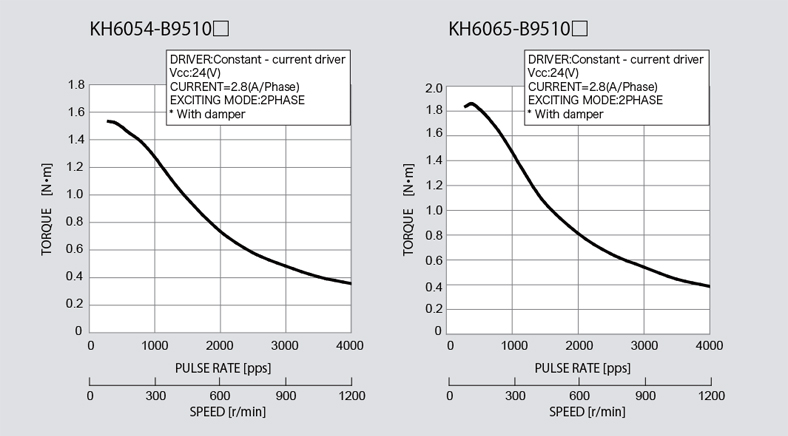

■ SPEED-TORQUE CHARACTERISTICS

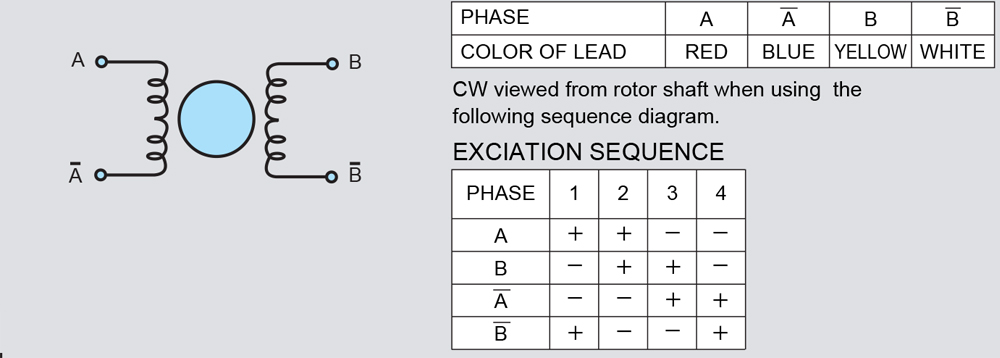

■ CONNECTION DIAGRAMS

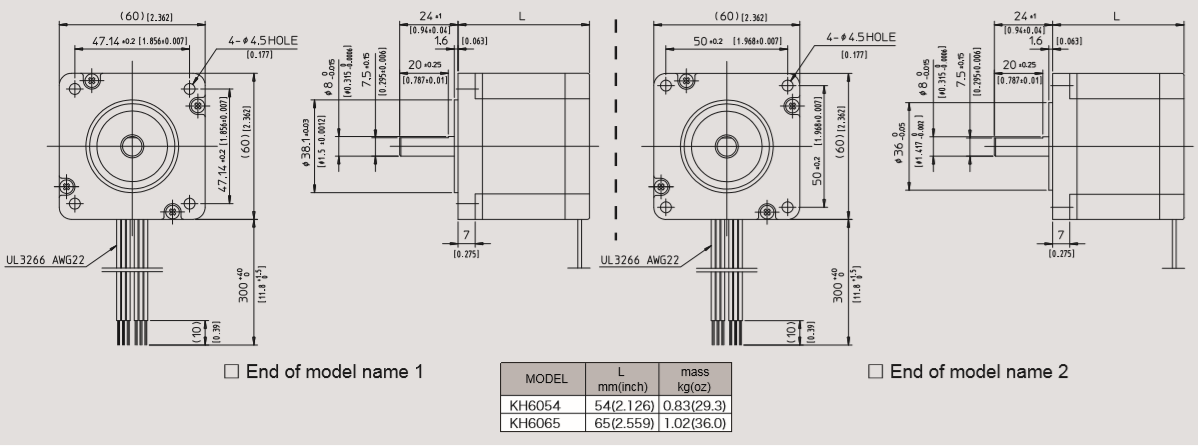

■ DIMENSIONS Unit = mm(inch)
