Double Crystal Monochromator
Model Name
-
Series
Accelerator Device Business
Data
-
Manufacturer information
provider logo
VactronSemi conductor equipment and Vacuum equipment manufacturer, Vacuum system, Solar cell
Problem with product info?
Update request
Manufacturer
Vactron
Brand
-
SKU
33683
Product Name
Double Crystal Monochromator
Model Name
-
Size
-
Weight
-
Product Details

Overview

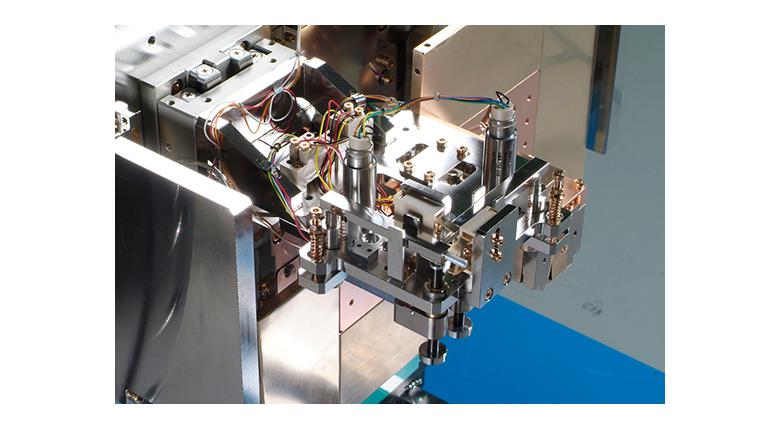

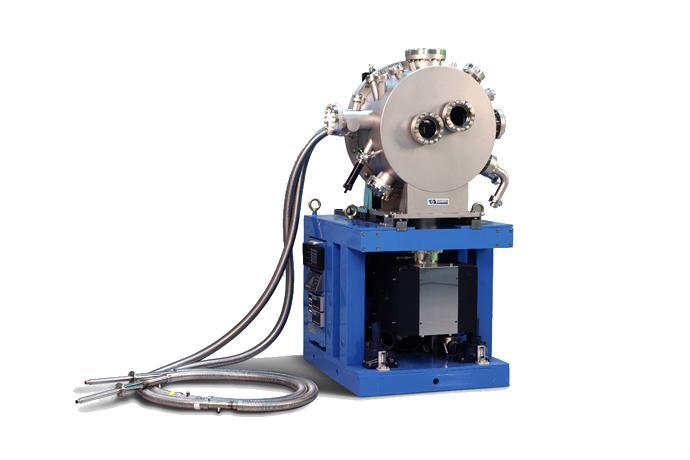

A device that spectrumizes monochromatic light from incident white synchrotron beams Equipped with high-precision motion stage for precise locating and directing of a crystal according to the change in x-ray wavelength



Specifications

PART ACTUATOR/MONITOR RESOLUTION
Bragg Angle Goniometer 0.07”(Min)
Angle Encoder 0.0024″
Z Actuator 6㎛ Max 0.03nm Min
Linear Encoder 50nm
Roll(2nd crystal) Pico-Motor 0.018”
LVDT Calibration is necessary
Pitch(2nd crystal) Pico-Motor 0.013”
LVDT Calibration is necessary
Fine pitch PZT 0.3 nrad
VactronSemi conductor equipment and Vacuum equipment manufacturer, Vacuum system, Solar cell
VACTRON specialize in engineering and manufacturing, Providing ultra precise components and systems, including ultra high vacuum(UHV) systems, since 1994. We supply the total solution for precision vacuum systems for many companies and laboratories in korea, such as Po-hang Accelerator Laboratory.  We provide our products worldwide. We are growing as a world-class company in the field of Synchrotron Beamlines and Ultra High Vacuum Appications based on accumulated technological expertise and price competitiveness.
