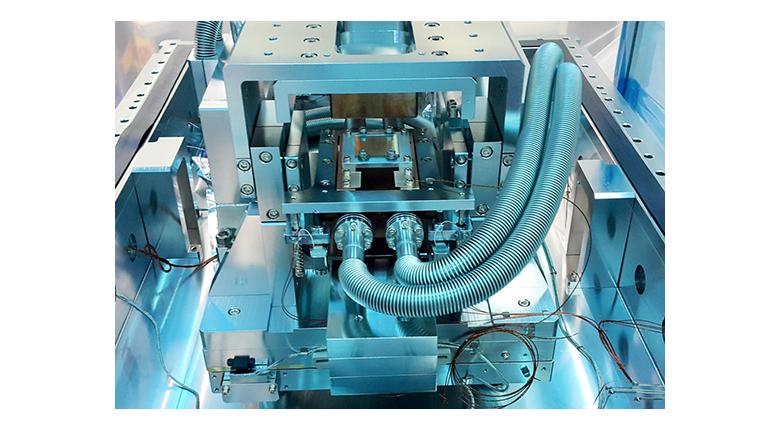

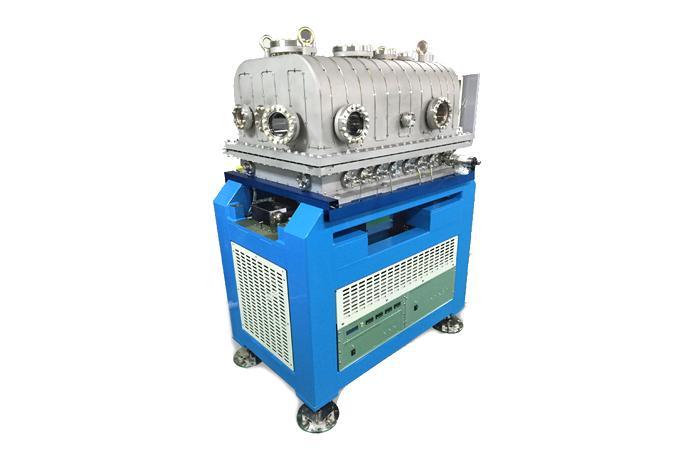

Plane Grating Monochromator
Model Name
-
Series
Accelerator Device Business
View All
Data
-
Manufacturer information
Closed down
provider logo
Vactron

Semi conductor equipment and Vacuum equipment manufacturer, Vacuum system, Solar cell

Problem with product info?
Update request
Manufacturer
Vactron
Product Type
Machine
Brand
-
SKU
33685
Product Name
Plane Grating Monochromator
Model Name
-
Size
-
Weight
-
Product Details

Overview

Maximized performance due to utilization of plane optic components Able to supply photons from a significantly wide range of energy due to the limited number of gratings



Specifications

PART Parameter Deflection Mirror Grating
Grating & DM Rotation (Pitch axis) Range(mrad) 60
Resolution(μrad) 0.1
Grating & DM Z (Height) Range(mm) ±10
Resolution(µm) 0.05
Grating & DM Roll Range(mrad) ±5
Resolution(μrad) 50
Chamber X Range(mm) ±10
Resolution(µm) 0.01
Angle Sensor Range(Degree) ±0.5
Resolution(Degree) <= 0.0001
