Product Name

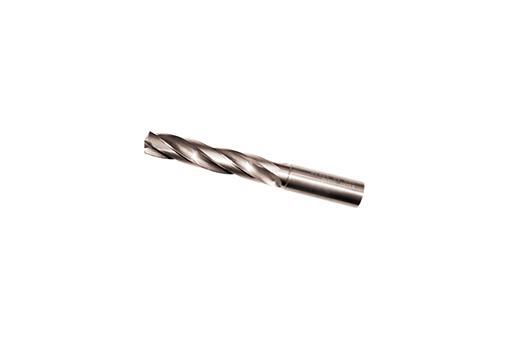

UR Solid 3F Drill
Model Name
URDF5XD
Size
-
Weight
-
Product Details
-스테인레스, 고온 합금, 주철 및 비철금속과 같이 광범위한 피삭재의 가공에 적합
-Wide application - suitable for drilling stainless steel, hardened still, cast iron, non ferrous metal, alloyed steel.
-Surface-Treatment : Non-Coating도 가능함
-우수한 조도 및 정밀한 치수가공에 적합
-이상적인 인선 및 게싱 형상으로 Chip 배출이 탁월
-드릴 인선당 적은 부하와 3날의 안정적인 균형으로 공구수명 증대
-To achive excellent hole finishing and precise hole size - +0.015/+0.03mm (IT8)
-Superb chip evacuation by ideal shape of cutting edge and gashing.
-Lower resistance per flute and good balance of 3 flute increase tool life.
| 모델번호 EDP NO. |
드릴직경 (D1) Drill Diameter |
날길이 (L1) Flute Length |
온길이 (L) Overall Length |
생크직경 (D) Shank Diameter |
나선 Helix |
경도 Hardness |
Length type Length type |
|---|---|---|---|---|---|---|---|
| URDF 5040 | 4.0 | 33 | 60 | 4.0 | 30 | 60 | 5XD |
| URDF 5045 | 4.5 | 36 | 70 | 5.0 | 30 | 60 | 5XD |
| URDF 5050 | 5.0 | 39 | 70 | 5.0 | 30 | 60 | 5XD |
| URDF 5055 | 5.5 | 43 | 85 | 6.0 | 30 | 60 | 5XD |
| URDF 5060 | 6.0 | 43 | 85 | 6.0 | 30 | 60 | 5XD |
| URDF 5065 | 6.5 | 47 | 90 | 7.0 | 30 | 60 | 5XD |
| URDF 5070 | 7.0 | 50 | 90 | 7.0 | 30 | 60 | 5XD |
| URDF 5075 | 7.5 | 52 | 95 | 8.0 | 30 | 60 | 5XD |
| URDF 5080 | 8.0 | 56 | 100 | 8.0 | 30 | 60 | 5XD |
| URDF 5085 | 8.5 | 56 | 100 | 9.0 | 30 | 60 | 5XD |
| URDF 5090 | 9.0 | 61 | 105 | 9.0 | 30 | 60 | 5XD |
| URDF 5095 | 9.5 | 61 | 105 | 10.0 | 30 | 60 | 5XD |
| URDF 5100 | 10.0 | 65 | 110 | 10.0 | 30 | 60 | 5XD |
| URDF 5105 | 10.5 | 65 | 110 | 11.0 | 30 | 60 | 5XD |
| URDF 5110 | 11.0 | 71 | 115 | 11.0 | 30 | 60 | 5XD |
