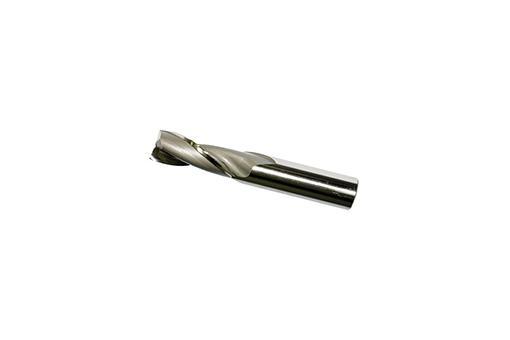

UR 2 Flutes Square End Mill
Model Name
UREM2000-SS
Data
-
Manufacturer information
provider logo
UR. ToolsCutting tools manufacturer, Drill, End mill and more
Problem with product info?
Update request
Manufacturer
UR. Tools
Brand
-
SKU
61785
Product Name
UR 2 Flutes Square End Mill
Model Name
UREM2000-SS
Size
-
Weight
-
Product Details

(주)유림툴스 UR 2날 스퀘어 엔드밀 UREM2000-SS

(주)유림툴스 UR 2날 스퀘어 엔드밀 UREM2000-SS 1

-HRC 70 이하 고경도 소재의 금속 가공용으로 설계

-최신 고품질 코팅 적용

-Surface-Treatment : Non-Coating도 가능함

-Designed for hardened material in high speed cutting.

-A newly developed high quality coating is adopted.


모델번호
EDP NO.
인선직경(D)
Outside Diameter
날길이 (L1)
Flute Length
전장(L)
Overall length
생크직경 (D)
Shank Diameter
날수
No. of flute
나선
Helix
경도
Hardness
UREM2010-SS 1.0 2.5 45 6 2 35 70
UREM2015-SS 1.5 4 45 6 2 35 70
UREM2020-SS 2.0 6 45 6 2 35 70
UREM2025-SS 2.5 8 50 6 2 35 70
UREM2030-SS 3.0 10 50 6 2 35 70
UREM2035-SS 3.5 10 50 6 2 35 70
UREM2040-SS 4.0 12 60 6 2 35 70
UREM2050-SS 5.0 15 60 6 2 35 70
UREM2060-SS 6.0 15 60 6 2 35 70
UREM2070-SS 7.0 20 65 8 2 35 70
UREM2080-SS 8.0 20 65 8 2 35 70
UREM2090-SS 9.0 25 70 10 2 35 70
UREM2100-SS 10.0 25 70 10 2 35 70
UREM2120-SS 12.0 30 80 12 2 35 70
UREM(S) 2024 2.4 5 52 6 2 35 70
