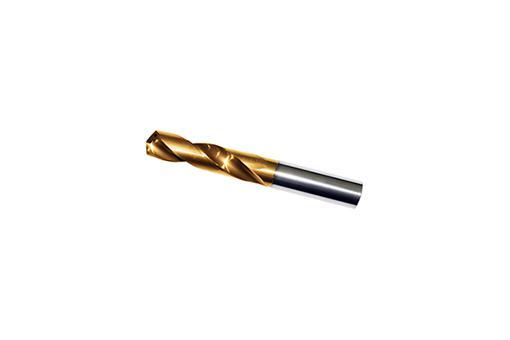

UR Solid Oil Hole Cupid Driil
Model Name
CUOD3XD
Data
-
Manufacturer information
provider logo
UR. ToolsCutting tools manufacturer, Drill, End mill and more
Problem with product info?
Update request
Manufacturer
UR. Tools
Brand
-
SKU
61776
Product Name
UR Solid Oil Hole Cupid Driil
Model Name
CUOD3XD
Size
-
Weight
-
Product Details

(주)유림툴스 UR 솔리드 오일홀 큐피드 드릴 CUOD3XD

(주)유림툴스 UR 솔리드 오일홀 큐피드 드릴 CUOD3XD 1

-고급 텅스텐 카바이드 소재를 사용하여 주강, 주철, 스테인레스 강, 인코넬, 열처리 강 등의 난삭재 가공에 최적

-By using high quality tungsten carbide, URT drill is most suitable for cutting cast steel, cast iron, stainless steel, inconel and heat treated steel.

(주)유림툴스 UR 솔리드 오일홀 큐피드 드릴 CUOD3XD 2

-비틀림각 (HELIX Angle) : 30˚

-날끝각 (Point Angle) : 140˚

-자루 직경 공차 (Shank DIA. Tolerance) : h6

-드릴 직경 공차 (Drill DIA. Tolerance) : m7

-Surface-Treatment : Non-Coating도 가능함

(주)유림툴스 UR 솔리드 오일홀 큐피드 드릴 CUOD3XD 3

-드릴의 선단에 절삭 이론 원리를 이용한 New Design 채택

-New Design으로 별도의 Centering과 Reaming이 필요없음

-인성과 내마모성이 우수한 초미립자 고급재질을 사용, 공구의 수명을 향상하여 무인작업이 가능

-내부 냉각수 주입방식, Chip 배출이 탁월하므로 고속가공 및 자동화에 적합

-By using the machining theory, new design of drill is adopted.

-Self centering and good finishing - Centering and reaming is is not required.

-Excellent toughness and abrasion resistance improve tool life and URT drill is suitable for automatic process.

-Internal coolant supply, suitable for high speed cutting condition by good chip removal.

standard series

모델번호
EDP NO.
드릴직경 (D1)
Drill Diameter
날길이 (L1)
Flute Length
온길이 (L)
Overall Length
생크직경 (D)
Shank Diameter
나선
Helix
경도
Hardness
Length type
Length type
CUOD 3055 5.5 30 66 6.0 30 60 3XD
CUOD 3060 6.0 30 66 6.0 30 60 3XD
CUOD 3065 6.5 34 74 7.0 30 60 3XD
CUOD 3070 7.0 34 74 7.0 30 60 3XD
CUOD 3075 7.5 40 79 8.0 30 60 3XD
CUOD 3080 8.0 40 79 8.0 30 60 3XD
CUOD 3085 8.5 43 84 9.0 30 60 3XD
CUOD 3090 9.0 43 84 9.0 30 60 3XD
CUOD 3095 9.5 47 89 10.0 30 60 3XD
CUOD 3100 10.0 47 89 10.0 30 60 3XD
CUOD 3105 10.5 51 95 11.0 30 60 3XD
CUOD 3110 11.0 51 95 11.0 30 60 3XD
CUOD 3115 11.5 54 102 12.0 30 60 3XD
CUOD 3120 12.0 54 102 12.0 30 60 3XD
CUOD 3125 12.5 57 102 13.0 30 60 3XD
