Dirt, Rust, Paint and Unwanted Deposits to prepare surface for repair and painting.
The abrasive from the high flow, 10 Gallon, 100-pound U100-S penetrates the deepest pitted area to remove dirt, rust, paint and unwanted deposits. Readies the surface for priming and filler. Ideal for refinishing vehicles, boats, monuments, brick buildings, and industrial equipment.
Models

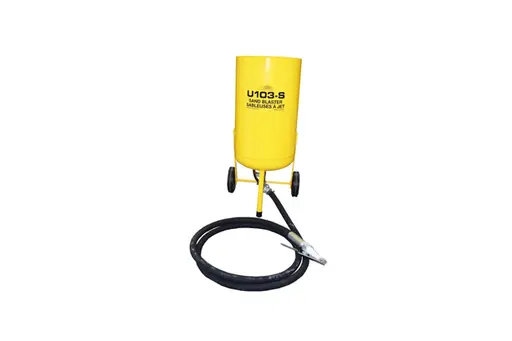

Economical U100-S U103-S
Complete with 8 ft, 4 ply, heavy duty 1/2” hose, clamped securely to Blast Gun. Complete with: 10 ft, 4 ply heavy duty 1/2” hose, quick disconnect fittings on hose and blaster to eliminate a blockage, pressure regulator, moisture filter, 3 seal blocks and 3 1/8” ceramic nozzles.
Features
High flow, 4 ply, 1/2 inch heavy duty hose.
Abrasive gun with Safety Shut Off Valve, a unique Uni-ram design, to terminate air and abrasive flow.
Tank size is 8.5 US gallons.
Pressure Relief Valve, Pressure Gage and cutoff valves for supply air, abrasive and air passage to abrasive.
Operation
Filling tank with Abrasive is quick and easy
Pour abrasive with ease into Built-In Funnelat top of tank.
Return maintenance free Removable Filler Plug and apply air pressure, which forces plug upward and seals tank.
Blasting Abrasive
Open Air Inlet Shut-Off Valve all the way on side of tank.
Adjust Abrasive Control Valve on bottom of tank. This regulates the mixture of air to abrasive.
Squeeze Safety Shut-Off Valve to activate flow of abrasive.
Abrasives include: glass beads, metal shot, aluminum oxide and nut shells.
NOTE: Uni-ram recommends against the use of coal and other slag products that may contain and expose the user to intrinsically hazardous dusts, such as beryllium.
Appropriate protective equipment should be worn at all times during blasting operations.
The Safety Shut-Off is an innovative Uni-ram design. Releasing lever terminates abrasive flow for operator safety.
Specifications
5-10 HP compressor provides 7-20 CFM at 80 PSI
100 lb abrasive capacity.
large, 4 ply, 1/2 inch hose diameter for high flow and long life.
Part Number Nozzle Inside Dia. (in) Compressor (hp) CFM@80 PSI Abrasive Consumption (lb/hr) Surface Blasting(sq ft per minute)
