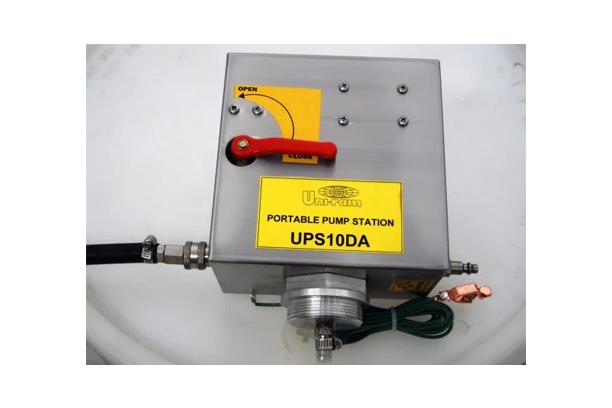

UPS10DA, PORTABLE PUMPING STATION

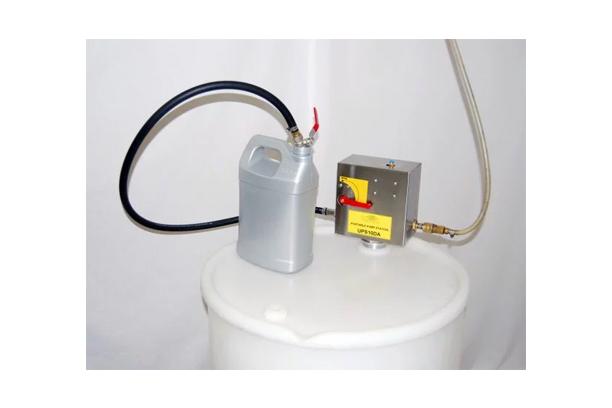

Transfers liquid from a drum to a portable container, up to 1.9 gallons per minute.

Features

• Powered by compressed air, requires a minimum of 60 PSI.
• Connects to the bung of drum.
• Valve at the discharge hose regulates the liquid flow.
• Includes brass intake tube, ground strap, suction and dispensing hose.

Advantages of UPS10DA over a hand pump

Hand pumps are prone to leaks and a short service life.

• the reliable, long lasting UPS10DA does not leak and has a long service life. 2 year replacement warranty.
• Less time to transfer liquid:
• Hand pumps require manual pumping to transfer liquid. UPS10DA does not require manual pumping; simply turn on the pump, powered by compressed air, to transfer liquid.
• Hand pumps need to be primed. Priming is not required with the UPS10DA.
• The seals and components in hand pumps are often not made for solvents, and tend to leak quickly and retire early. The UPS10DA is designed for solvents and a long service life.
• The long output hose in the UPS20DA allows liquid to transfer directly from a drum to a gun cleaner or pail to help prevent lifting injuries. The dispensing ball valve allows the user to control the flow of liquid without spillage.

Specifications

• Powered by compressed air, a minimum of 60 PSI, 0.95 CFM. Set at 85 PSI at factory. Pressure regulator included.
• For common solvents and aqueous solutions.
• Always use the supplied ground strap for safe operation. Not approved for gasoline.
• Transfers liquid up to 1.9 gallons per minute (7.2 Litres per minute).
• Powered by 2″ dual diaphragm pump, part number UDP2TA
• Moisture filter not included.

Dimensions: 7”w x 4”d x 7”h  (18cmW x 10cmD x 18cmH) Weight: 7 lb (3kg)
