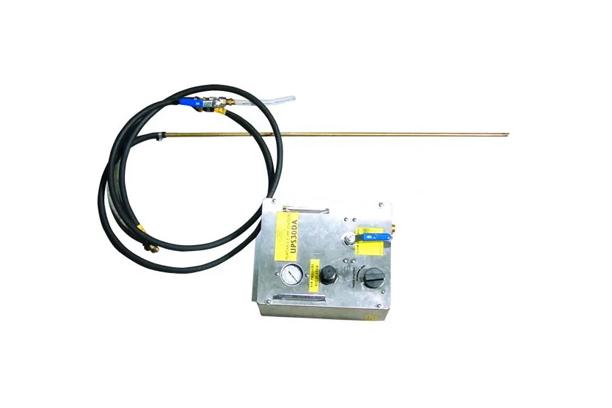

UPS20DA, PORTABLE PUMPING STATION

Transfers liquid from one container to another, up to 3.7 gallons per minute.

Ideal for

Dispensing liquid from an economical 55 gallon drum to a smaller, portable container.

Features

• Powered by compressed air, requires a minimum of 60 PSI.
• Mounts to a wall or rests on a table.
• Valve at the discharge hose regulates the liquid flow.
• Includes brass intake tube, ground strap, suction and dispensing hose.

Advantages of UPS20DA over a hand pump

Hand pumps are prone to leaks and a short service life.

• the reliable, long lasting UPS20DA does not leak and has a long service life. 2 year replacement warranty.
• Less time to transfer liquid:
• Hand pumps require manual pumping to transfer liquid. UPS20DA does not require manual pumping; simply turn on the pump, powered by compressed air, to transfer liquid.
• Hand pumps need to be primed. Priming is not required with the UPS20DA.
• The seals and components in hand pumps are often not made for solvents, and tend to leak quickly and retire early. The UPS20DA is designed for solvents and a  long service life.
• The long output hose in the UPS20DA allows liquid to transfer directly from a drum to a gun cleaner or pail to help prevent lifting injuries. The dispensing ball valve allows the user to control the flow of liquid without spillage.

Specifications

• Powered by compressed air, minimum of 60 PSI, 2 CFM. Set at 85 PSI at factory. Pressure regulator included.
• For common solvents and aqueous solutions.
• Always use the supplied ground strap for safe operation. Not approved for gasoline.
• Transfers liquid up to 3.7 gallons per minute (14 Litres per minute).
• Powered by 4″ dual diaphragm pump, part number UDP4TA
• Moisture filter not included.

Dimensions: 9″w x 6″d x 11″h (23cmW x 15cmD x 27cmH) Weight: 8 lb (4kg)
