TOPTEK

TOPTEK

Dovetail Stage (Screw Type)

Model

Series

Manual Stage

Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.

Description


TOPTEK Dovetail Stage (Screw Type)

TOPTEK Dovetail Stage (Screw Type) 1

호칭형번Part numberMDSX-2430MDSX-3860
스테이지면 크기Size of stage face24 X 30mm38 X 60mm
이동거리Travel distance+/- 4mm+/- 7.5mm
이동 가이드Travel guideDevetail type. Screw
내하중Load capacity1.0kgf2.5kgf
평행도Degree of parallelization0.05mm
무게Weight0.3kg0.9kg
재질MaterialAluminum
후처리Surface finishingBlack Anodized

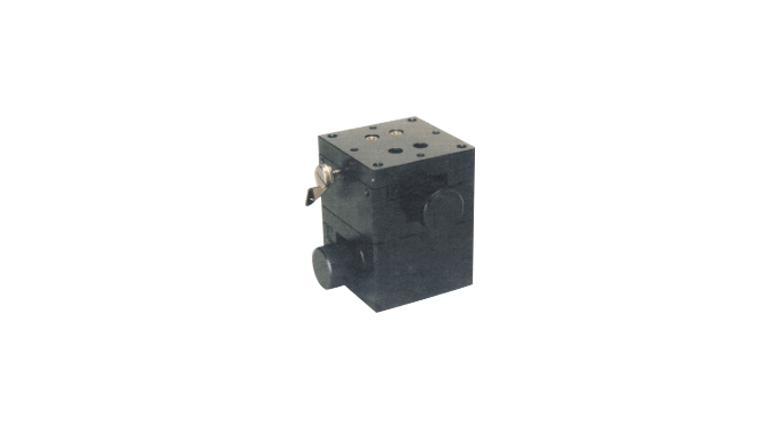

TOPTEK Dovetail Stage (Screw Type) 2

TOPTEK Dovetail Stage (Screw Type) 3

호칭형번Part numberMDSXY-2430MDSXY-3860
스테이지면 크기Size of stage face24 X 30mm38 X 60mm
이동거리Travel distance+/- 4mm+/- 7.5mm
이동 가이드Travel guideDevetail type. Screw
내하중Load capacity1.0kgf2.5kgf
평행도Degree of parallelization0.01mm
무게Weight0.1kg0.3kg
재질MaterialAluminum
후처리Surface finishingBlack Anodized

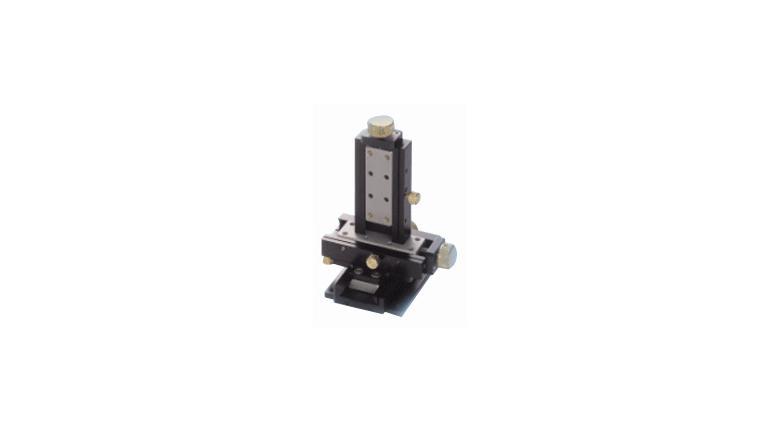

TOPTEK Dovetail Stage (Screw Type) 4

TOPTEK Dovetail Stage (Screw Type) 5

호칭형번Part numberMDSXYZ-2430MDSXYZ-3860
스테이지면 크기Size of stage face24 X 30mm38 X 60mm
이동거리Travel distance+/- 4mm+/- 7.5mm
이동 가이드Travel guideDevetail type. Screw
내하중Load capacity1.0kgf2.5kgf
평행도Degree of parallelization0.01mm
무게Weight0.1kg0.3kg
재질MaterialAluminum
후처리Surface finishingBlack Anodized

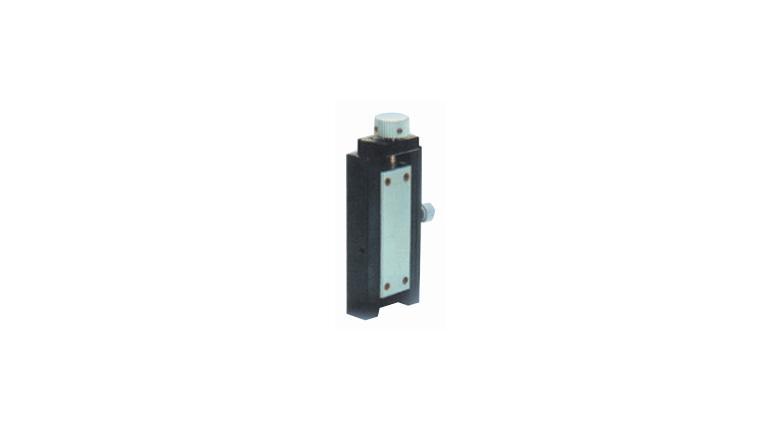

TOPTEK Dovetail Stage (Screw Type) 6

TOPTEK Dovetail Stage (Screw Type) 7

호칭형번Part numberMDSZ-2430MDSZ-3860
스테이지면 크기Size of stage face24 X 30mm38 X 60mm
이동거리Travel distance+/- 4mm+/- 7.5mm
이동 가이드Travel guideDevetail type. Screw
내하중Load capacity1.0kgf2.5kgf
평행도Degree of parallelization0.01mm
무게Weight0.1kg0.3kg
재질MaterialAluminum
후처리Surface finishingBlack Anodized
