product Image
Long Stroke Stage
Model Name
MLX-60110
Series
Manual Stage
Data
-
Manufacturer information
provider logo
TOPTEK

Stage & Cross roller guide manufacturer, Ring guide, Precision stage and more

Problem with product info?
Update request
Manufacturer
TOPTEK
Brand
-
SKU
31638
Product Name
Long Stroke Stage
Model Name
MLX-60110
Size
-
Weight
-
Product Details

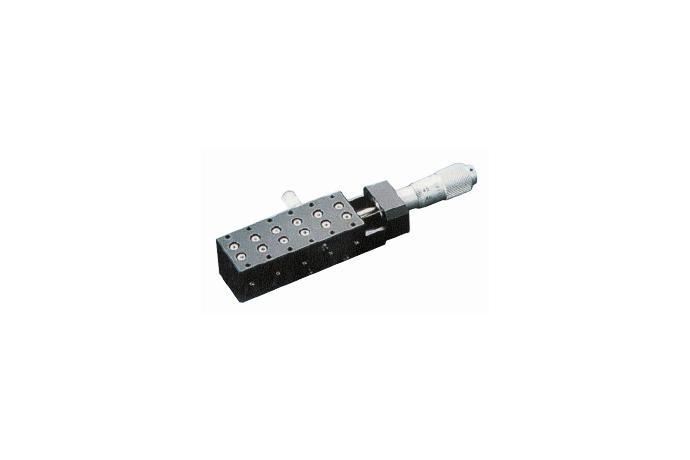

TOPTEK Long Stroke Stage MLX-60110



Application

TOPTEK Long Stroke Stage MLX-60110 1

TOPTEK Long Stroke Stage MLX-60110 2

호칭형번 Part number MLX-2560 MLX-60110
스테이지면 크기 Size of stage face 25X60mm 60X110mm
이동거리 Travel distance ±6.5mm Coarse motion±6.5mm
이동 가이드 Travel guide Crossroller Guide
내하중 Load capacity 2.0kgf 8.0kgf
평행도 Degree of parallelization 0.03mm
주행평행도 Parallelism of motion 0.01mm
무게 Weight 0.1kg 0.8kg
재질 Material Aluminum
후처리 Surface finishing Black Anodized
TOPTEK
Stage & Cross roller guide manufacturer, Ring guide, Precision stage and more
TOPTEK strive s to concentrate on technical developing precision stages and cross roller guides, and now we positioned us as a global specialized maker, and running in world market. TOPTEK is a company who is specialized in manufacturing Stages and Cross roller guides. Our company providing total solutions for stages and cross roller guides as a result of organizing a technologies Laboratory and concentrate on endless research and engineering since our company was established. TOPTEK who currently have more than 50 customer’s network and 14 overseas distributors in the world, both in name and reality, standing tall as a top of the world-wide stages and cross rollers market. Main productions, manual stages, Compact Manual & Miniature, Motorstage, Middle size Open Frame Stage, XY stage, Speical 3-Aix alignment stage, Cross roller guide and etc. are on the way of manufacturing, now engineers in TOPTEK accelerating developing Custom design and New applications for all of our customers. From now on. TOPTEK would confidently perform our task as a brilliant leading role in world-wide stage. Also with technology and confident which are recognized in the field of cross roller guide and precision stage, we would expand our application to contribute to development of national industry development and keep our fame as a World-top stage and cross roller guide manufacturer.
Inquiry
