Horizontal Stage
Model Name
MHZ-40/60/80
Series
Manual Stage
Data
-
Manufacturer information
provider logo
TOPTEK

Stage & Cross roller guide manufacturer, Ring guide, Precision stage and more

Problem with product info?
Update request
Manufacturer
TOPTEK
Brand
-
SKU
31639
Product Name
Horizontal Stage
Model Name
MHZ-40/60/80
Size
-
Weight
-
Product Details

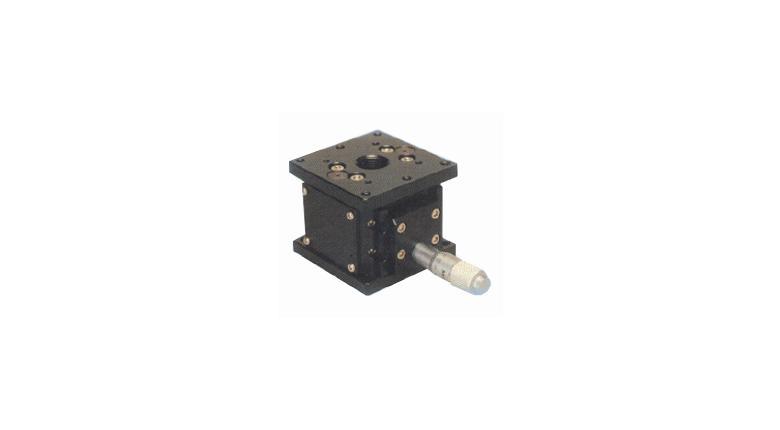

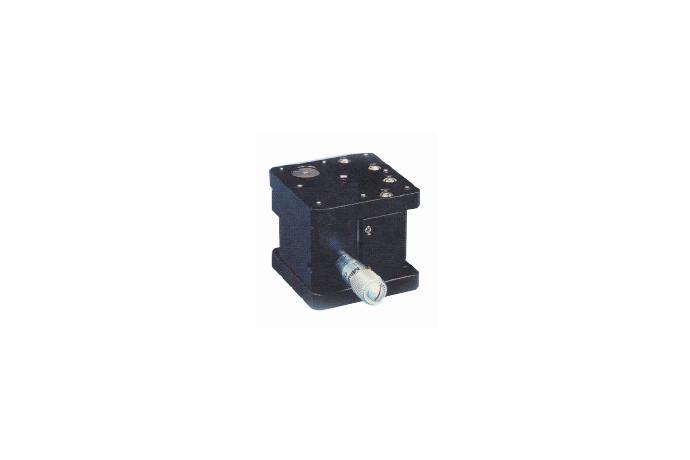

TOPTEK Horizontal Stage MHZ-40/60/80

TOPTEK Horizontal Stage MHZ-40/60/80 1

TOPTEK Horizontal Stage MHZ-40/60/80 2

호칭형번Part numberMHZ-40MHZ-60
스테이지면 크기Size of stage face40X40mm60X60mm
이동거리Travel distance±3mm±5mm
이동 가이드Travel guideCrossroller Guide
내하중Load capacity4.0kgf6.0kgf
주행수직도Verticality of motion0.01mm
무게Weight0.3kg0.4kg
재질MaterialAluminum
후처리Surface finishingBlack Anodized


TOPTEK Horizontal Stage MHZ-40/60/80 3

TOPTEK Horizontal Stage MHZ-40/60/80 4

TOPTEK Horizontal Stage MHZ-40/60/80 5

호칭형번Part numberMHZ-80
스테이지면 크기Size of stage face80X80mm
이동거리Travel distance±5
이동 가이드Travel guideCrossroller Guide
내하중Load capacity8.0kgf
주행수직도Verticality of motion0.01mm
무게Weight0.8kg
재질MaterialAluminum
후처리Surface finishingBlack Anodized
