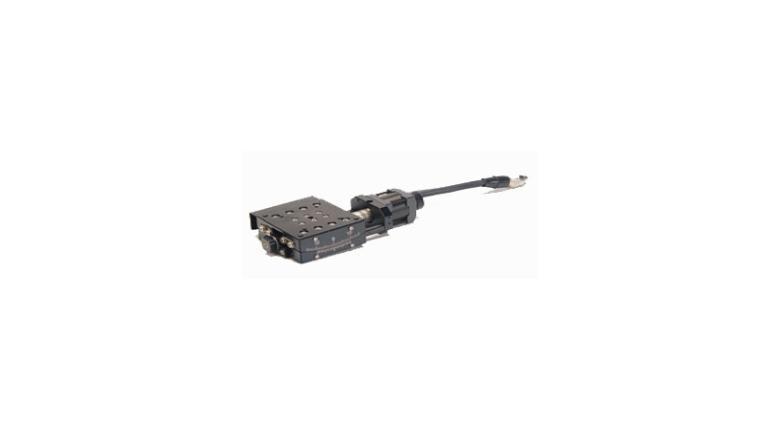

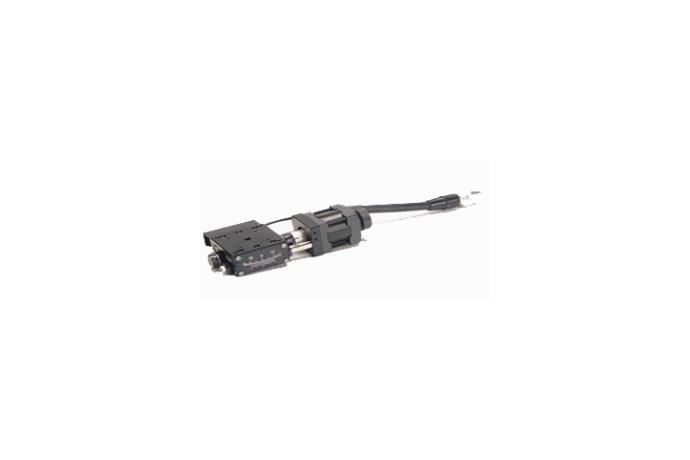

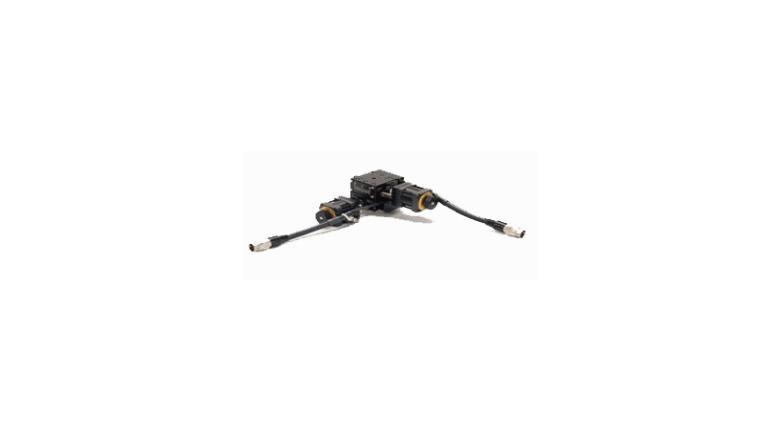

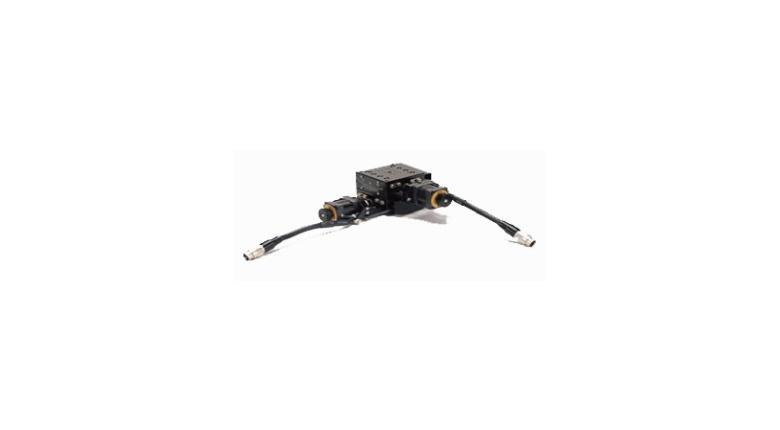

Gonio Stage
Model Name
MAG Series
Series
Motorized Stage
Data
-
Manufacturer information
provider logo
TOPTEK

Stage & Cross roller guide manufacturer, Ring guide, Precision stage and more

Problem with product info?
Update request
Manufacturer
TOPTEK
Product Type
Machine
Brand
-
SKU
31650
Product Name
Gonio Stage
Model Name
MAG Series
Size
-
Weight
-
Product Details


탑텍 고니오스테이지 MAG Series

탑텍 고니오스테이지 MAG Series 1

사양설명
스테이지면 크기40X40
이동거리±6˚
이동방식Worm Gear(1/267), Cross Roller
분해능0.0027˚/Pulse(Full Step)
최고 이송 속도13.5˚/sec[5kHz]
정도±0.005˚
단일-반복정밀도±1um
다중-반복정밀도±2um
상하흔들림정도25"
좌우흔들림정도20"
평행도(mm)0.02"
주행 평행도(mm)0.01"
진직도(mm)0.005
내하중(Kg)3
모터 형번PMM33BH2-C49(5P STEP)
하중(Kg)0.4
드라이버 형번DFC5107-P
센서 형번1원점 센서, 2 제한 센서
케이블 연결선HR-10A-10J-12P(HRS)
TOPTEK
Stage & Cross roller guide manufacturer, Ring guide, Precision stage and more
TOPTEK strive s to concentrate on technical developing precision stages and cross roller guides, and now we positioned us as a global specialized maker, and running in world market. TOPTEK is a company who is specialized in manufacturing Stages and Cross roller guides. Our company providing total solutions for stages and cross roller guides as a result of organizing a technologies Laboratory and concentrate on endless research and engineering since our company was established. TOPTEK who currently have more than 50 customer’s network and 14 overseas distributors in the world, both in name and reality, standing tall as a top of the world-wide stages and cross rollers market. Main productions, manual stages, Compact Manual & Miniature, Motorstage, Middle size Open Frame Stage, XY stage, Speical 3-Aix alignment stage, Cross roller guide and etc. are on the way of manufacturing, now engineers in TOPTEK accelerating developing Custom design and New applications for all of our customers. From now on. TOPTEK would confidently perform our task as a brilliant leading role in world-wide stage. Also with technology and confident which are recognized in the field of cross roller guide and precision stage, we would expand our application to contribute to development of national industry development and keep our fame as a World-top stage and cross roller guide manufacturer.
