Slim Type XY Stage
Model Name
MSXY Series
Series
Manual Stage
Data
-
Manufacturer information
provider logo
TOPTEK

Stage & Cross roller guide manufacturer, Ring guide, Precision stage and more

Problem with product info?
Update request
Manufacturer
TOPTEK
Brand
-
SKU
31637
Product Name
Slim Type XY Stage
Model Name
MSXY Series
Size
-
Weight
-
Product Details

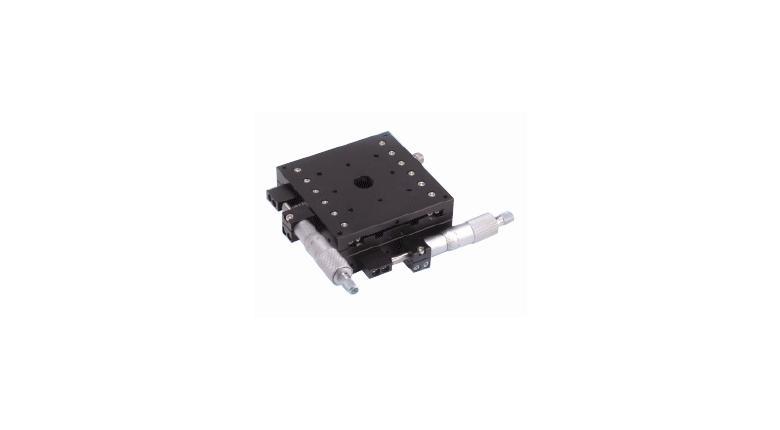

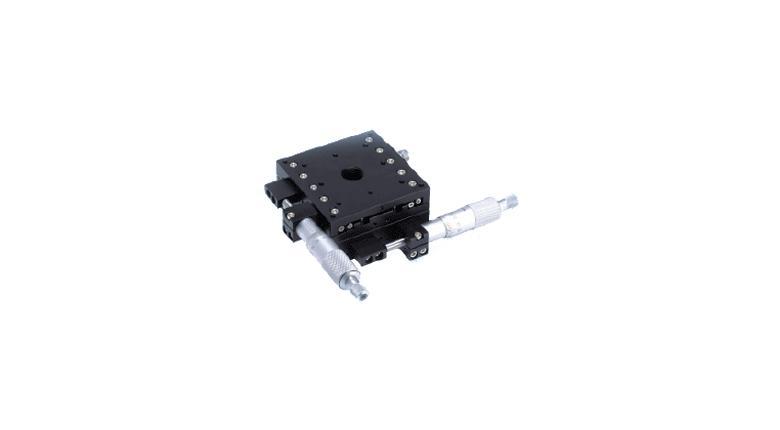

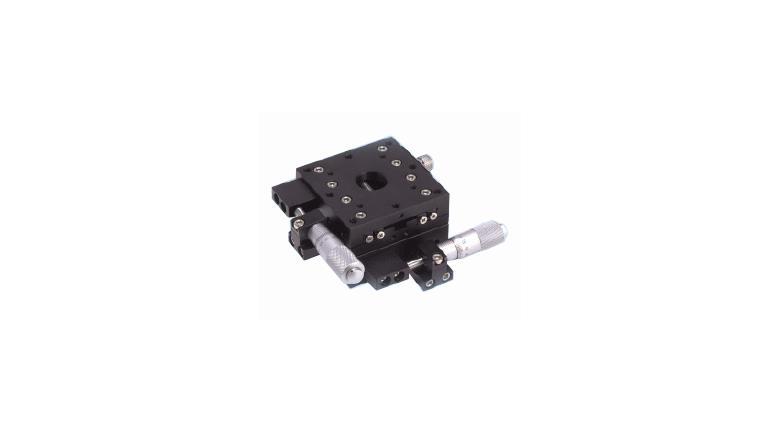

TOPTEK Slim Type XY Stage MSXY Series

TOPTEK Slim Type XY Stage MSXY Series 1

TOPTEK Slim Type XY Stage MSXY Series 2

호칭형번Part numberMSXY-40LMSXY-40RMSXY-40C
마이크로미터 위치Micrometer position좌 Left우 Right중앙 Center
스테이지면 크기Size of stage face40X40mm
이동거리Travel distance±6.5mm
이동 가이드Travel guideCrossroller Guide
내하중Load capacity1.0kgf
평행도Degree of parallelization0.05mm
주행평행도Parallelism of motion0.02mm
무게Weight0.2kg
재질MaterialAluminum
후처리Surface finishingBlack Anodized


TOPTEK Slim Type XY Stage MSXY Series 3

TOPTEK Slim Type XY Stage MSXY Series 4

TOPTEK Slim Type XY Stage MSXY Series 5

호칭형번Part numberMSXY-60LMSXY-60RMSXY-60C
마이크로미터 위치Micrometer position좌 Left우 Right중앙 Center
스테이지면 크기Size of stage face60X60mm
이동거리Travel distance±6.5mm
이동 가이드Travel guideCrossroller Guide
내하중Load capacity3.0kgf
평행도Degree of parallelization0.05mm
주행평행도Parallelism of motion0.02mm
무게Weight0.4kg
재질MaterialAluminum
후처리Surface finishingBlack Anodized


TOPTEK Slim Type XY Stage MSXY Series 6

TOPTEK Slim Type XY Stage MSXY Series 7

TOPTEK Slim Type XY Stage MSXY Series 8

호칭형번Part numberMSXY-80LMSXY-80RMSXY-80C
마이크로미터 위치Micrometer position좌 Left우 Right중앙 Center
스테이지면 크기Size of stage face80X80mm
이동거리Travel distance±12.5mm
이동 가이드Travel guideCrossroller Guide
내하중Load capacity4.0kgf
평행도Degree of parallelization0.05mm
주행평행도Parallelism of motion0.02mm
무게Weight0.7kg
재질MaterialAluminum
후처리Surface finishingBlack Anodized


TOPTEK Slim Type XY Stage MSXY Series 9

TOPTEK Slim Type XY Stage MSXY Series 10

TOPTEK Slim Type XY Stage MSXY Series 11

호칭형번Part numberMSXY-100LMSXY-100RMSXY-100C
마이크로미터 위치Micrometer position좌 Left우 Right중앙 Center
스테이지면 크기Size of stage face100X100mm
이동거리Travel distance±12.5mm
이동 가이드Travel guideCrossroller Guide
내하중Load capacity4.0kgf
평행도Degree of parallelization0.05mm
주행평행도Parallelism of motion0.02mm
무게Weight1.08kg
재질MaterialAluminum
후처리Surface finishingBlack Anodized
