Electro Pneumatic Valve Positioner (Option Code No.6)
Model Name
TS600L
Series
Electro Pneumatic Valve Positioner
View All
Data
Wiring Diagram-Tissin-Electro Pneumatic Valve Positioner (Option Code No.6)-TS600L, TS600R
Manufacturer information
provider logo
TISSIN

Professional brand of control valve accessories.

Problem with product info?
Update request
Manufacturer
TISSIN
Product Type
Machine
Brand
-
SKU
140583
Product Name
Electro Pneumatic Valve Positioner (Option Code No.6)
Model Name
TS600L, TS600R
Size
-
Weight
-
Product Details

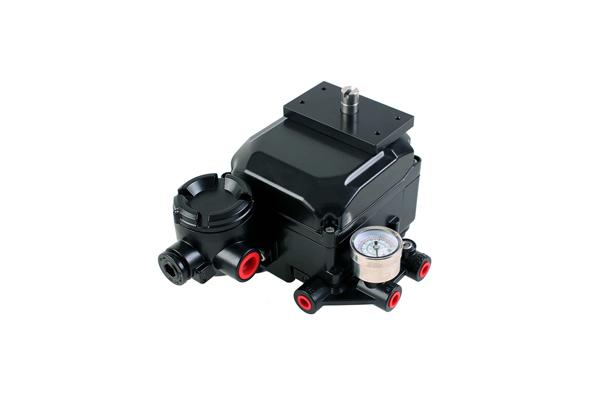

TS600R with L/S mounting device



Description

TS600 Electro pneumatic valve positioner control valve stroke in response to input signal of 4-20mA from control panel, DCS, or calibrator.



Features

  • Applied to various control valve system
  • Fast response time, durability, and excellent stability
  • Simple zero and span adjustment
  • IP 66 enclosure
  • Easy maintenance due to built-in module type
  • By-pass valve (A/M switch) installed
  • Air connection part is designed for detachability and it can be changed
  • PT/NPT tapping threads in the field easily



Specifications

MODEL TS600L TS600R
Input signal 4~20mA DC
Impedance 250±15Ω
Supply pressure 0.14~0.7MPa
Stroke 10~150mm 0~90º
Air connection P(NPT) 1/4
Gauge connection P(NPT) 1/8
Conduit G(PF)1/2 or NPT1/2
Explosion proof type Non-explosion proof
Ex dmb IIB T5/T6, Ex dmb IIC T5/T6
Ex ia IIC T5/T6
Enclosure IP66
Ambient Temp. Operating Temp. -20℃~70℃(Standard),
-40℃ ~ 70℃(Low temp.), -20℃ ~ 120℃(High temp.)
Explosion Temp. -40℃~60℃(T5) / -40℃~40℃(T6)
Linearity ±1.0% F.S. ±2.0% F.S. ±1.0% F.S. ±2.0% F.S.
Sensitivity ±0.2% F.S. ±0.5% F.S. ±0.2% F.S. ±0.5% F.S.
Hysteresis ±1.0% F.S.
Repeatability ±0.5% F.S.
Air consumption Below 2.5LPM (Sup.=0.14MPa)
Flow capacity Over 80LPM (Sup.=0.14Mpa)
Material Aluminum die casting
Weight 2.8kg
