TETRADYNE

TETRADYNE

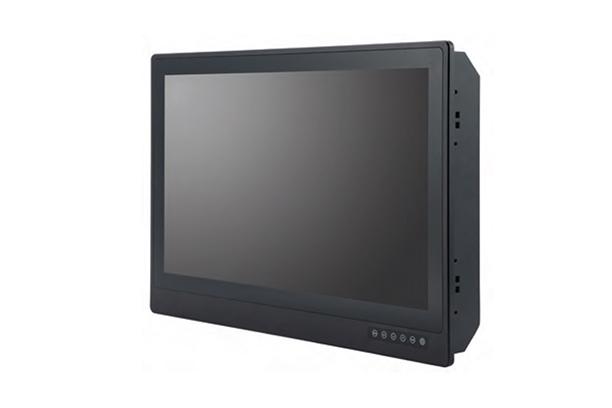

27 Inch Marine Monitor

Model

Series

Marine · Offshore


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Please contact Komachine.


Description

GENERAL

This specification defines the descriptions for the TIMX-W270 TFT LCD Monitor. TIMX series is developed and designed for use in operator display such as Industrial and Marine applications.

TIMX-W270 is type-approved by DNVGL.





KEY FEATURES

- Capacitive touch OSD Control

- HDMI, DVI, RGB, BNC (Option) input

- Picture in Picture (PIP)

- Projected Capacitive Touch Screen – Option

- Anti-glare – Option

- Internal Buzzer Control – Option

- Flush Mounting





SPECIFICATION

GENERAL FEATURE
Section Specifications
Display type LED Backlight , Wide TFT LCD
Viewable Size 27 inch diagonal
Resolution 1920 x 1080 @60Hz
Aspect Ratio 16:9
Brightness 350cd/㎡
Contrast Ratio 3000:1
Response Time 12ms
Active Area 597.6 (H) x 336.15 (V) mm
Pixel Pitch 0.31125 (H) x 0.31125 (V) mm
Viewable Angle 178° RL / 178° UD
Support Color 16.7M colors
Synchronization Range 31~80 Hz (Horizontal)
55~76 Hz (Vertical)
Detectable Resolution 640 x 480, 800 x 600,
1024 x 768, 1280 x 1024
1600 x 1200, 1920 x 1080
Connector Types 1 x HDMI (Standard)
1 x DVI (DVI 24p female)
1 x RGB (D-SUB 15p female)
2 x Composite (CVBS)
1 x RS232 (D-SUB 9p female)
1 x RS-422/485 (Euro Terminal Block)
Power Specification 100~230VAC 50/60Hz (IEC Standard Type)
DC24V (Terminal Block)
Power Consumption 45W (MAX)
Dimension 690 (W) x 70 (D) x 460 (H) mm
Weight 13.5kg
Temperature Range Operating : -15℃ to +55℃
Non-Operating : -20℃ to +60℃
Humidity Range Operating : up to 95%
Non-Operating : up to 95%
Option Projected Capacitive Touch Screen
Anti Glare Glass, Optical Bonding
Sunlight Readable/High Brightness
RS-232/422/485
Composite Video
Buzzer
IP-Rating IP65 Front
Test Approval IEC 60945 4th, IACS E-10, IEC 60529
Certification DNV GL
Warranty 24 months





DRAWING


Download

catalog-tetradyne-TIMX-W270
