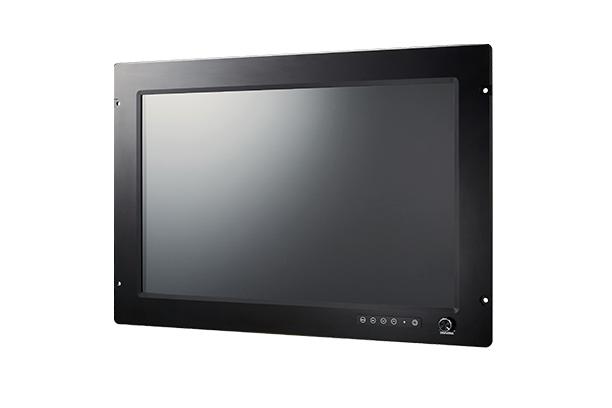

24 Inch Marine Monitor
Model Name
TIM-W240NH
Series
Marine · Offshore
Data
catalog-tetradyne-TIM-W240NH
Manufacturer information
provider logo
TETRADYNE
Industrial and Marine monitor manufacturer, TFT LCD Monitor
Problem with product info?
Update request
Manufacturer
TETRADYNE
Brand
-
SKU
124490
Product Name
24 Inch Marine Monitor
Model Name
TIM-W240NH
Size
-
Weight
-
Product Details

GENERAL

This specification defines the descriptions for the TIM-W240NH TFT LCD Monitor.

TIM series is developed and designed for use in operator display such as Industrial and Marine applications.

TIM-W240NH is type-approved by ABS, BV, DNVGL, KR, LR, RS.





KEY FEATURES

- Mambrane OSD control

- DVI-D, RGB Input Signal

- Console, Stand (Desktop) Mounting Type

- Aluminum chassis (Front)





SPECIFICATION

GENERAL FEATURE
Section Specifications
Display type LED Backlight, Wide TFT LCD
Viewable Size 24 inch diagonal
Resolution 1920 x 1200 @60Hz
Aspect Ratio 16:10
Brightness 300cd/㎡
Contrast Ratio 1000:1
Response Time 14ms
Active Area 518.400 (H) x 324.000 (V) mm
Pixel Pitch 0.270 (H) x 0.270 (V) mm
Viewable Angle 178°RL / 178°UD
Support Color 16.7M colors
Synchronization Range 31~80 Hz (Horizontal)
55~76 Hz (Vertical)
Detectable Resolution 640 x 350, 640 x 480, 720 x 400,
800 x 600, 1024 x 768, 1280 x 1024,
1600 x 1200, 1920 x 1080, 1920 x 1200
Connector Types 1 x VGA (D-SUB 15p female)
1 x DVI-D (DVI 24p female)
1 x RS232 (D-SUB 9p female)
Power Specification 110VAC~230VAC 50/60Hz (IEC Standard AC Inlet)
Power Consumption 40W (MAX)
Dimension 630 (W) x 74 (D) x 436 (H) mm
Weight 13.12kg
Temperature Range Operating : 0℃ to +55℃
Non-Operating : -20℃ to +60℃
Humidity Range Operating : up to 95%
Non-Operating : up to 95%
Option Dimming : 3~100%
Test Approval IEC 60945, IACS E-10
Certification ABS, BV, DNV, KR, LR, RS
Warranty 24 months





DRAWING
