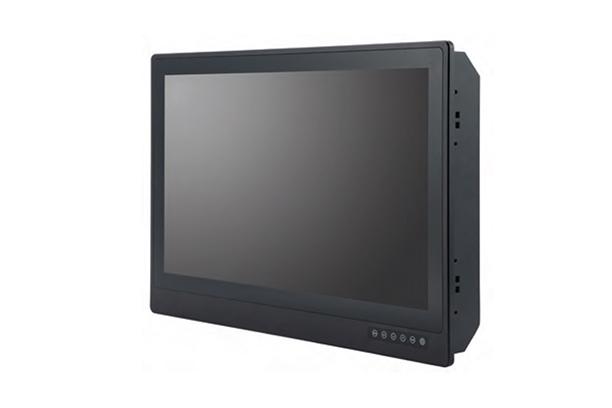

27 Inch Marine Monitor
Model Name
TIMX-W270
Manufacturer information
TETRADYNE
Verified & Trusted Manufacturer
Industrial and Marine monitor manufacturer, TFT LCD Monitor
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
TETRADYNE
Product Type
Machine
Brand
-
SKU
124502
Product Name
27 Inch Marine Monitor
Model Name
TIMX-W270
Size
-
Weight
-
Product Details
GENERAL
This specification defines the descriptions for the TIMX-W270 TFT LCD Monitor. TIMX series is developed and designed for use in operator display such as Industrial and Marine applications.
TIMX-W270 is type-approved by DNVGL.
KEY FEATURES
- Capacitive touch OSD Control
- HDMI, DVI, RGB, BNC (Option) input
- Picture in Picture (PIP)
- Projected Capacitive Touch Screen – Option
- Anti-glare – Option
- Internal Buzzer Control – Option
- Flush Mounting
SPECIFICATION
| GENERAL FEATURE | |
| Section | Specifications |
| Display type | LED Backlight , Wide TFT LCD |
| Viewable Size | 27 inch diagonal |
| Resolution | 1920 x 1080 @60Hz |
| Aspect Ratio | 16:9 |
| Brightness | 350cd/㎡ |
| Contrast Ratio | 3000:1 |
| Response Time | 12ms |
| Active Area | 597.6 (H) x 336.15 (V) mm |
| Pixel Pitch | 0.31125 (H) x 0.31125 (V) mm |
| Viewable Angle | 178° RL / 178° UD |
| Support Color | 16.7M colors |
| Synchronization Range | 31~80 Hz (Horizontal) 55~76 Hz (Vertical) |
| Detectable Resolution | 640 x 480, 800 x 600, 1024 x 768, 1280 x 1024 1600 x 1200, 1920 x 1080 |
| Connector Types | 1 x HDMI (Standard) 1 x DVI (DVI 24p female) 1 x RGB (D-SUB 15p female) 2 x Composite (CVBS) 1 x RS232 (D-SUB 9p female) 1 x RS-422/485 (Euro Terminal Block) |
| Power Specification | 100~230VAC 50/60Hz (IEC Standard Type) DC24V (Terminal Block) |
| Power Consumption | 45W (MAX) |
| Dimension | 690 (W) x 70 (D) x 460 (H) mm |
| Weight | 13.5kg |
| Temperature Range | Operating : -15℃ to +55℃ Non-Operating : -20℃ to +60℃ |
| Humidity Range | Operating : up to 95% Non-Operating : up to 95% |
| Option | Projected Capacitive Touch Screen Anti Glare Glass, Optical Bonding Sunlight Readable/High Brightness RS-232/422/485 Composite Video Buzzer |
| IP-Rating | IP65 Front |
| Test Approval | IEC 60945 4th, IACS E-10, IEC 60529 |
| Certification | DNV GL |
| Warranty | 24 months |
DRAWING
