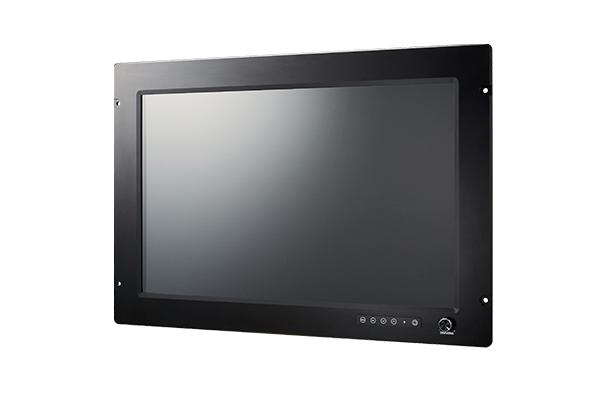

Product Name 26 Inch Marine Monitor
Model TIM-W260NH
Series Marine · Offshore
Catalog catalog-tetradyne-TIM-W260NH.pdf
Product Description


This specification defines the descriptions for the TIM-W260NH TFT LCD Monitor.

TIM series is developed and designed for use in operator display such as Industrial and

Marine applications.

TIM-W260NH is type-approved by ABS, BV, DNVGL, KR, LR, RS.


- Mambrane OSD control

- DVI-D, RGB Input Signal

- Console, Stand (Desktop) Mounting Type

- Aluminum chassis (Front)


Display typeLED Backlight, Wide TFT LCD
Viewable Size26 inch diagonal
Resolution1920 x 1200 @60Hz
Aspect Ratio16:10
Contrast Ratio1500:1
Response Time20ms
Active Area554.1 (H) x 347.8 (V) mm
Pixel Pitch0.2865 (H) x 0.2865 (V) mm
Viewable Angle178°RL / 178°UD
Support Color16.7M colors
Synchronization Range31~80KHz (Horizontal)
55~76Hz (Vertical)
Detectable Resolution640 x 350, 640 x 480, 720 x 400,
800 x 600, 1024 x 768, 1280 x 1024,
1600 x 1200, 1920 x 1080, 1920 x 1200
Connector Types1 x VGA (D-SUB 15p female)
1 x DVI-D (DVI 24p female)
1 x RS232 (D-SUB 9p female)
Power Specification110VAC~230VAC 50/60Hz (IEC Standard AC Inlet)
Power Consumption50W (MAX)
Dimension660 (W) x 89 (D) x 456 (H) mm
Temperature RangeOperating : 0℃ to +50℃
Non-Operating : -20℃ to +60℃
Humidity RangeOperating : up to 95%
Non-Operating : up to 95%
OptionDimming : 3~100%
Test ApprovalIEC 60945, IACS E-10
CertificationABS, BV, DNV, KR, LR, RS
Warranty24 months
