This product is manufactured by
TETRADYNE

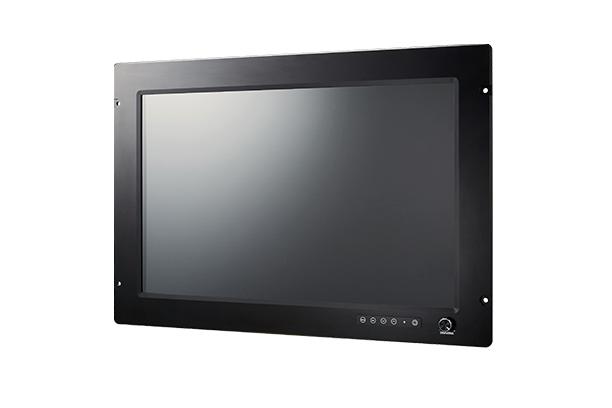

26 Inch Marine Monitor
Model Name
TIM-W260NH
Manufacturer information
TETRADYNE
Verified & Trusted Manufacturer
Industrial and Marine monitor manufacturer, TFT LCD Monitor
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
TETRADYNE
Product Type
Machine
Brand
-
SKU
124492
Product Name
26 Inch Marine Monitor
Model Name
TIM-W260NH
Size
-
Weight
-
Product Details
GENERAL
This specification defines the descriptions for the TIM-W260NH TFT LCD Monitor.
TIM series is developed and designed for use in operator display such as Industrial and Marine applications.
TIM-W260NH is type-approved by ABS, BV, DNVGL, KR, LR, RS.
KEY FEATURES
- Mambrane OSD control
- DVI-D, RGB Input Signal
- Console, Stand (Desktop) Mounting Type
- Aluminum chassis (Front)
SPECIFICATION
| GENERAL FEATURE | |
| Section | Specifications |
| Display type | LED Backlight, Wide TFT LCD |
| Viewable Size | 26 inch diagonal |
| Resolution | 1920 x 1200 @60Hz |
| Aspect Ratio | 16:10 |
| Brightness | 350cd/㎡ |
| Contrast Ratio | 1500:1 |
| Response Time | 20ms |
| Active Area | 554.1 (H) x 347.8 (V) mm |
| Pixel Pitch | 0.2865 (H) x 0.2865 (V) mm |
| Viewable Angle | 178°RL / 178°UD |
| Support Color | 16.7M colors |
| Synchronization Range | 31~80KHz (Horizontal) 55~76Hz (Vertical) |
| Detectable Resolution | 640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1080, 1920 x 1200 |
| Connector Types | 1 x VGA (D-SUB 15p female) 1 x DVI-D (DVI 24p female) 1 x RS232 (D-SUB 9p female) |
| Power Specification | 110VAC~230VAC 50/60Hz (IEC Standard AC Inlet) |
| Power Consumption | 50W (MAX) |
| Dimension | 660 (W) x 89 (D) x 456 (H) mm |
| Weight | 15.15kg |
| Temperature Range | Operating : 0℃ to +50℃ Non-Operating : -20℃ to +60℃ |
| Humidity Range | Operating : up to 95% Non-Operating : up to 95% |
| Option | Dimming : 3~100% |
| Test Approval | IEC 60945, IACS E-10 |
| Certification | ABS, BV, DNV, KR, LR, RS |
| Warranty | 24 months |
DRAWING
