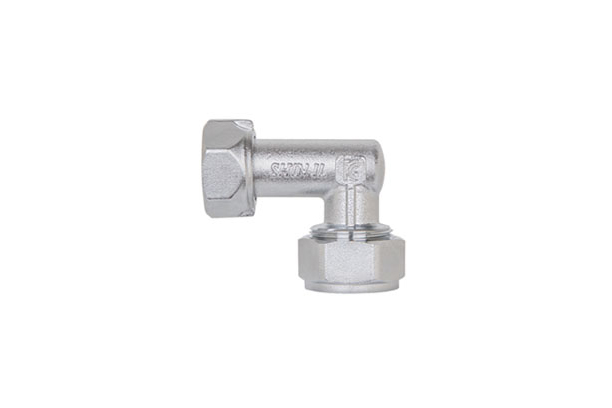

Product Name 수도용 직결소켓 (엘보형)
Model SI-101 ER, SI-101 EP
Series 수도용 직결소켓
Catalog
Product Description

수도용 직결소켓 (엘보형) [FITTING SOCKET FOR WATER GAUGE : ELBOW TYPE]







사양

MAX, 10kgf/㎠




PART NAMEMATERIAL
BODYFORGED BRASS
PB CAPPolybutylene (PB수지)
UNIONNUTFORGED BRASS
NUTBRASS




단면도





치수

UNIT : mm

SIZE

A

H

d

d1

15A (1/2")

44

37

PB Ø16

PF 3/4"

15A (1/2") x 20 (3/4")

48

40

PB Ø20

PF 3/4"
