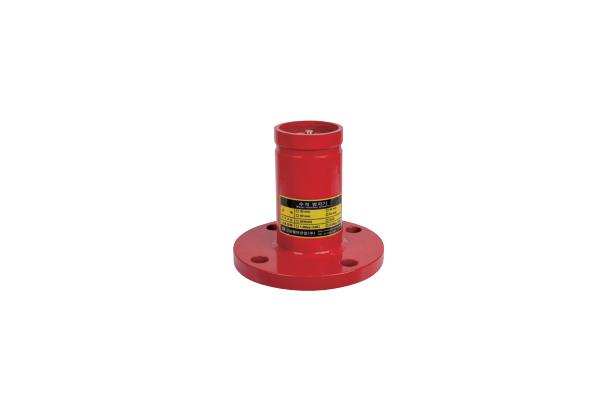

수격 방지기 (가스식)
Model Name
SI-1816
Series
-
Data
-
Manufacturer information
provider logo
SHINIL VALVEPipe fitting and Faucet valve manufacturer, GS reducing valve, Pipe one check valve, Manual balancing valve and more
Problem with product info?
Update request
Manufacturer
SHINIL VALVE
Brand
-
SKU
129580
Product Name
수격 방지기 (가스식)
Model Name
SI-1816, SI-1817
Size
-
Weight
-
Product Details

수격 방지기 (가스식)

아파트, 호텔, 단독주택 등 주거용 건물과 상업용 건물의 소방용 배관에 적용한다.




특징

● 수격 방지기는 워터해머를 흡수 또는 방지할 목적으로 만들어진 기계적 장치이며, 그 종류는 크게 4가지 (스프링식, 가스(에어)식, 다이아후렘식, 피스톤식)로 구분하며, 본 제품은 가스식이다.

● 가스(에어)식 : 소음이 적어서 실내 외 배관 어디에나 적용 가능하지만, 주기적인 점검이 필요하다.




사양

형식 NOS-1816S-1817
적용유체
적용압력MAX, 10kgf/cm²MAX,20kgf/cm²
적용온도0°C ~60°C
내압시험수압 MAX, 20kgf/cm²수압 MAX, 30kgf/cm²
접속방식KS 10K RF플랜지KS20K RF 플랜지
주요재질BODYSS275(일반 구조용 압연 강제)
SPRINGSWP




단면도





치수

형식 NOSI-1816, 1817
SIZEH
40A175
50A175
65A175
80A175
100A175
125A175
150A175
